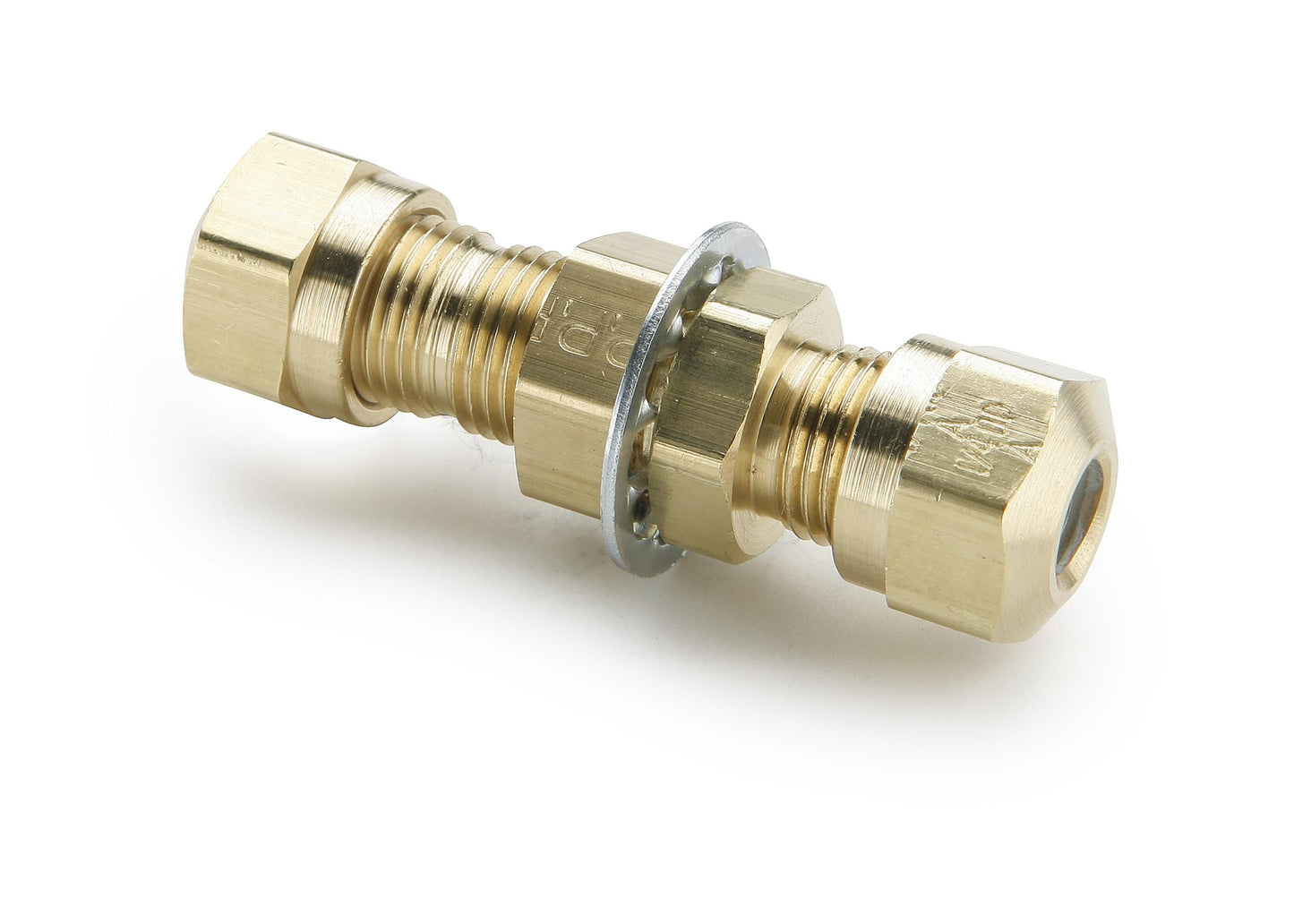

Parker DOT Brass Air Brake Compression - Nylon Bulkhead Union 5/8x5/8
(Pack of
10)
SKU:1608826 Item#: 1608826

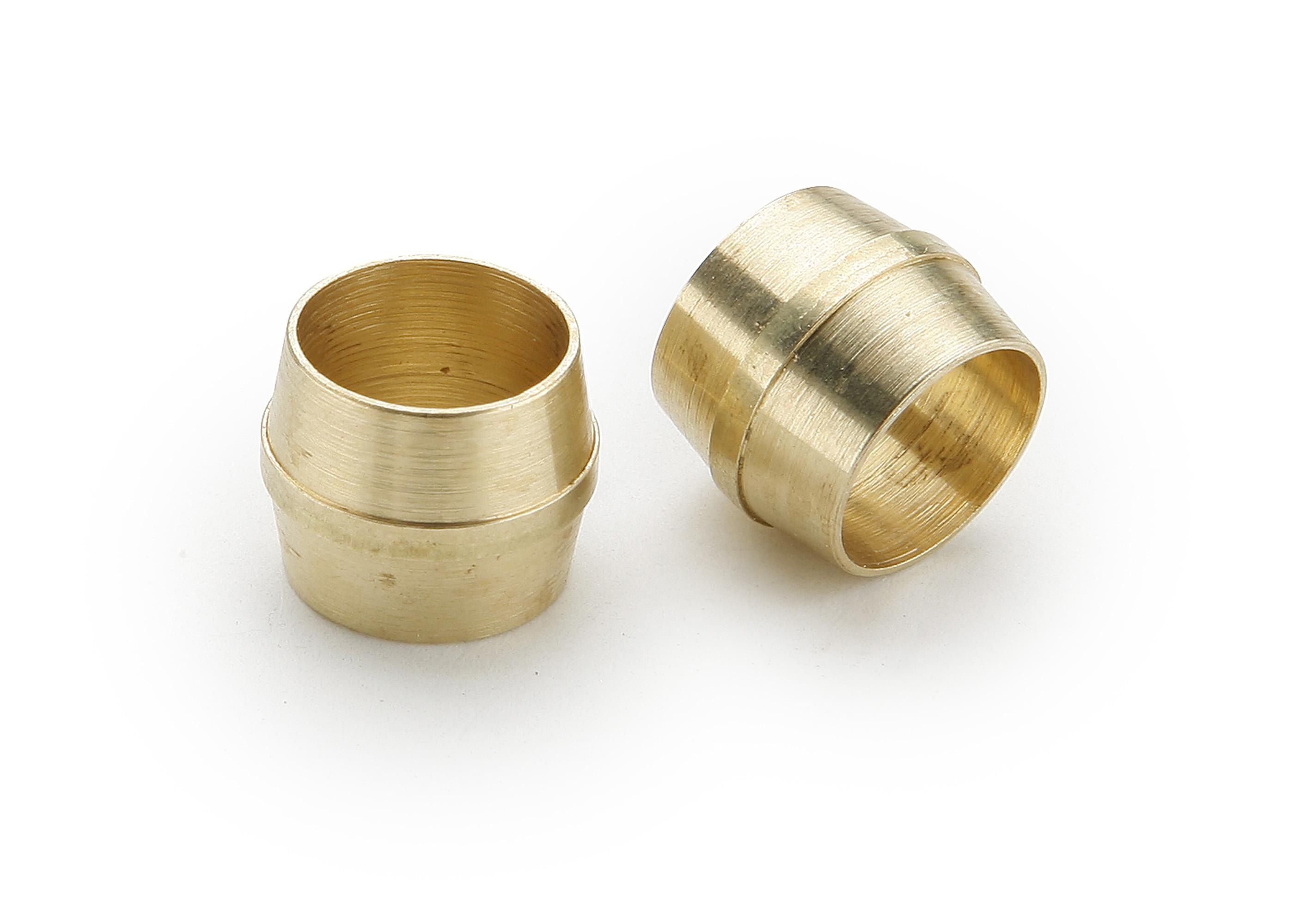

Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Frequently Bought Together
DOT Compression Elbow Male 90° Brass 3/4 x 1/2"
Couldn't load pickup availability
Parker DOT Compression - Nylon Female Elbow 90 Degrees 1/2x3/8
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/2"
Couldn't load pickup availability
Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing Union 1/4x1/4
Couldn't load pickup availability

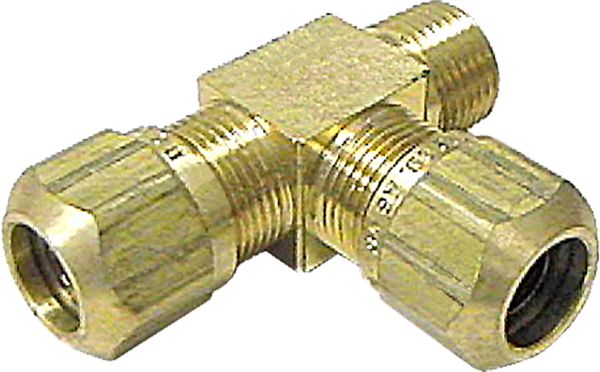

Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
Universal Vacuum Hose Connector 3/16"
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
•Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 1608826 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Bulkhead Union |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 5/8 " |
| Fitting Dimension B | 5/8 " |
| Parker Reference No. | 62NBH-10 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 3.5 lb |
