Home Air Brake Push-to-Connect Parker DOT PTC Male Elbow 90 Degrees 1/4x1/4
Air Brake Push-to-Connect

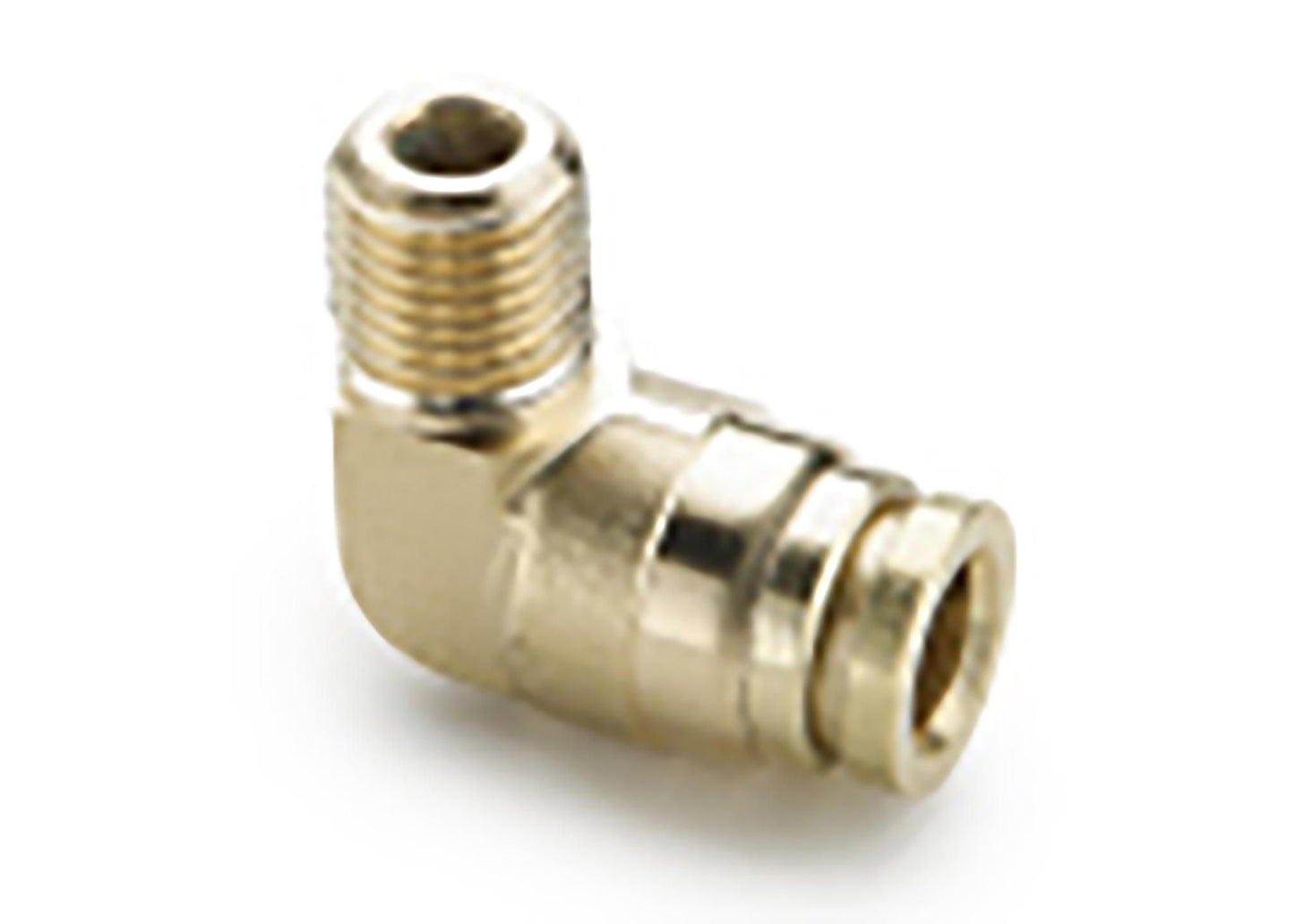

Parker DOT PTC Male Elbow 90 Degrees 1/4x1/4
(Pack of 10.0)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-4
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-6

Frequently Bought Together


Parker DOT PTC Female Elbow 1/4x1/8

Item#: 27212P

DOT Union Nylon 3/16 x 3/16"

Item#: 55305

Parker DOT PTC Male Elbow Swivel 90 Degrees 3/8x3/8

Item#: 27206P

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P

Parker DOT Compression - Nylon Male Connector 3/8x1/8

Item#: 96886P

Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8

Item#: 96882P

Pneumatic 50:1 Grease Pump Kit for 35lb Drums

Item#: 1677929

Premium Greasing Accessory 11 Piece Kit

Item#: 1677924

Quick Connect Grease Coupler, 1/8" NPT

Item#: 1677922

FLEXAIR 3/8" I.D. x 35' air hose

Item#: 1585090

Air/Water Hose Assembly 3/8" x 50' Red

Item#: 41458

Hydraulic Union 1/4-18 x 1/4-18

Item#: 86253

Nylon Cable Tie 7-1/2" Black

Item#: P60451

Spot Weld Remover Drill Bit HSS 2-13/16(M8)

Item#: P43782

Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-4
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 57510P
Class Air Brake
Fitting Type Air Brake Fittings - Push-to-Connect
Style DOT
Material Brass
Configuration Male Elbow 90 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 0.705 lb
