Parker DOT Brass Air Brake Fitting - Push-to-Connect Male Elbow 90 Degrees 3/8x1/4
(Pack of 10)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-4
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-6

Frequently Bought Together


DOT Connector Female Brass 3/8 x 3/8-18

Item#: 91834

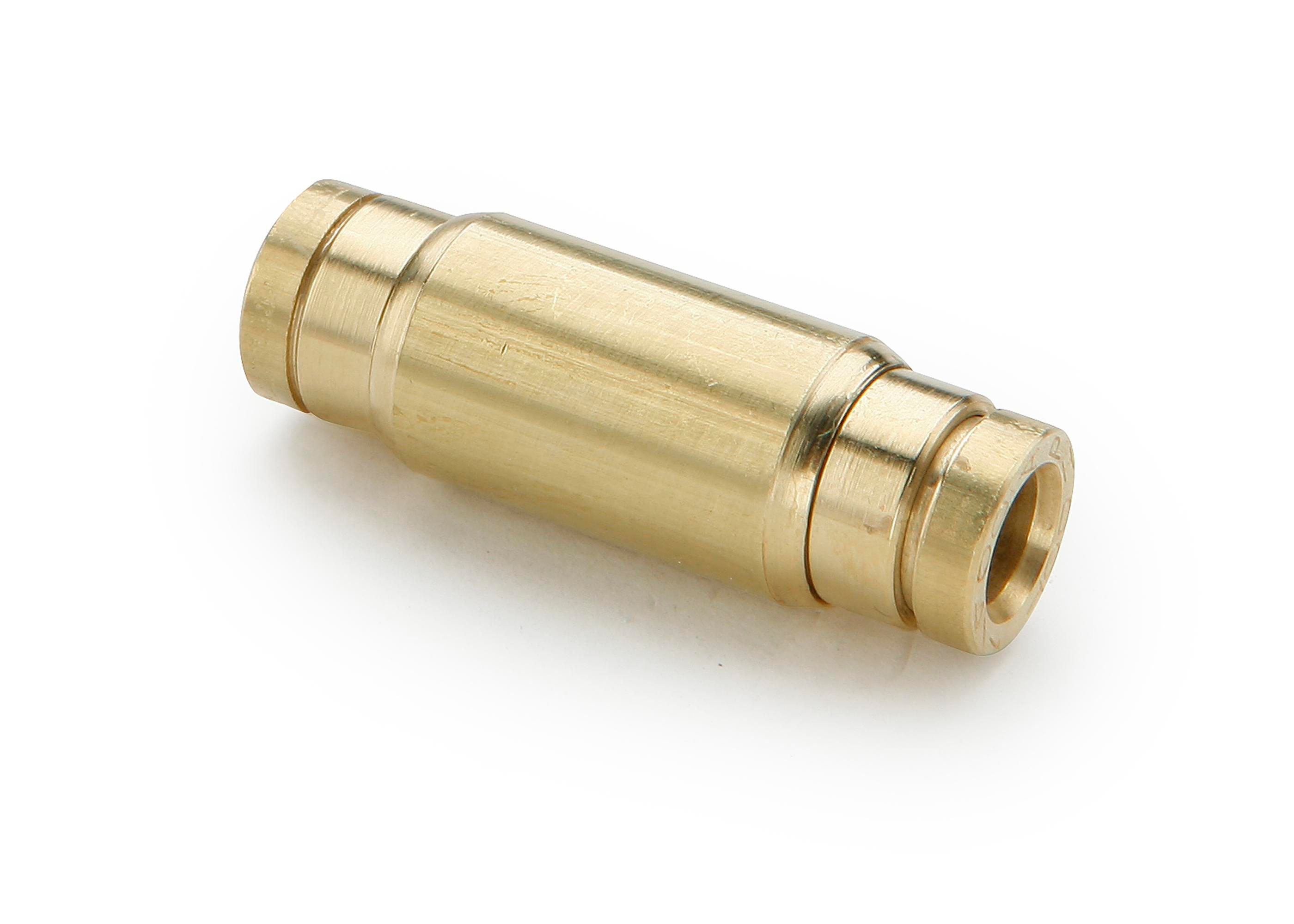

Parker DOT PTC Union 3/16x3/16

Item#: 1608786

DOT Elbow Male Nylon 3/16 x 1/8-27

Item#: 55296

DOT Compression Union Brass 1/2"

Item#: 84306

Parker DOT Field Attachable - Female Connector 1/2x7/8-20

Item#: 97258P

Parker DOT Compression - Nylon Tubing Union 1/4x1/4

Item#: 84253P

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

Universal Vacuum Hose Connector 3/16"

Item#: 54199

Hose Clamp 301 SS 9/16 to 1-1/4"

Item#: 86726

All-Plastic Ergonomic Venturi Blow Gun

Item#: 64353

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11951

AG-Lite Rubber Water Hose Lead In 3/4" x 6'

Item#: 1690522

Rocker Molding Clip with Sealer Nylon Blue 17mm

Item#: KT13687

Metric Indented Hex Head Bolt with 17mm Washer

Item#: KT11580

Bumper Clip Push-Type Retainer Nylon 18mm

Item#: KT12848

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-4
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 57511P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Male Elbow 90 Degrees
Connection Type A x B Tube x Pipe
Fitting Dimension A 3/8 "
Fitting Dimension B 1/4 "
Parker Reference No. VS169PMTNS-6-4
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 1.11 lb
