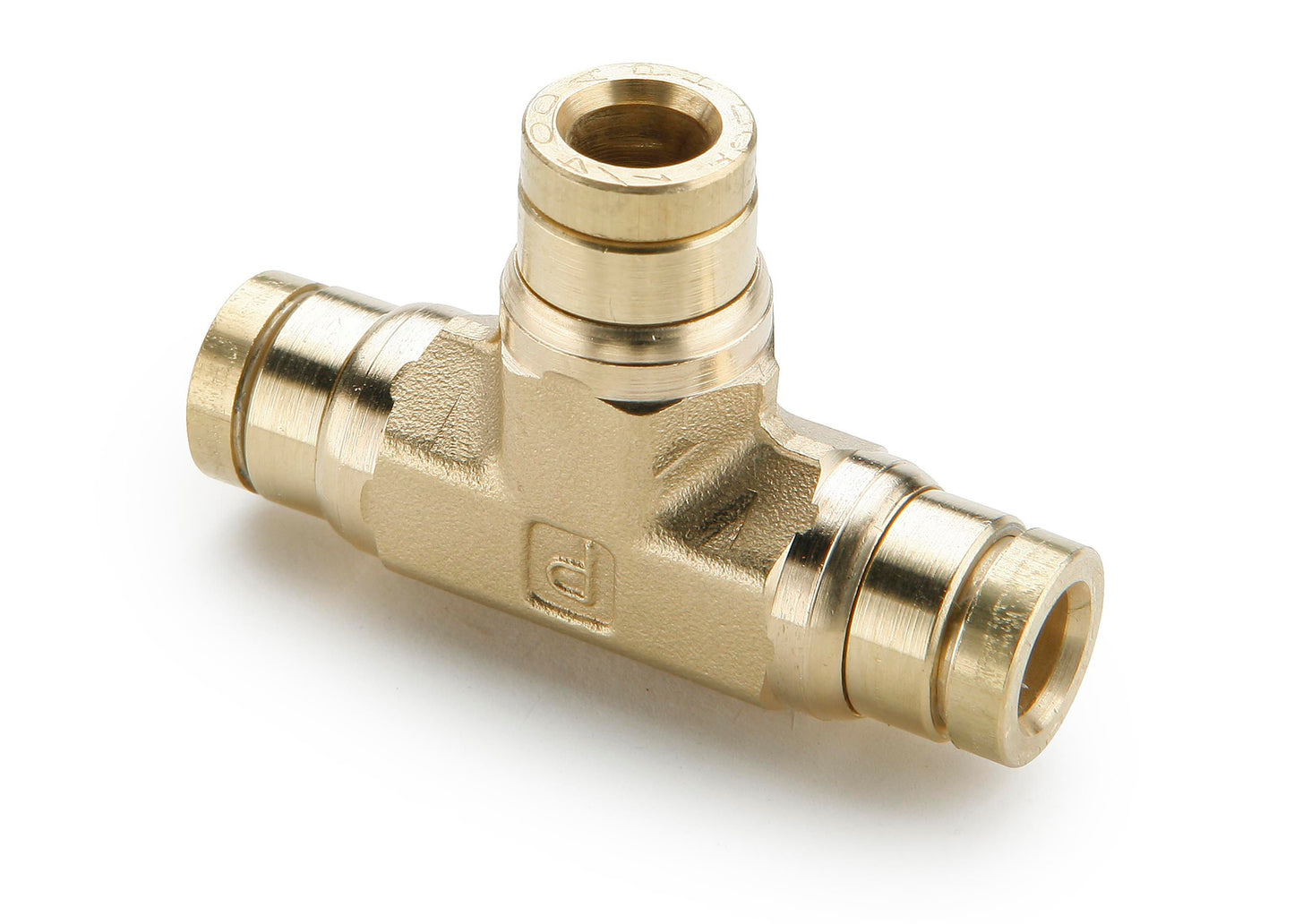

Parker DOT Brass Air Brake Fitting - Push-to-Connect Union Tee 1/4x1/4x1/4
(Pack of 10)

Parker

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-7
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Read More
Check Availability

Catalog page#: 8-8

Frequently Bought Together


DOT Union Nylon 3/16 x 3/16"

Item#: 55305

Parker DOT PTC Male Elbow Swivel 90 Degrees 3/8x3/8

Item#: 27206P

DOT Elbow Male Nylon 3/8 x 1/4-18

Item#: 91797

Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4

Item#: 84290P

Parker DOT Compression - Nylon Male Connector 3/8x1/8

Item#: 96886P

Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8

Item#: 96882P

Vacuum Hose Connector Straight 3/16 x 3/16"

Item#: KT12456

Norma Torro European Hose Clamp 3/8 to 5/8"

Item#: KT14008

Air Conditioning Slim Line Sealing Washer

Item#: KT14463

Super 77 Miniature Hose Clamp SS 5/16 to 7/8"

Item#: 86328

DOT Union Tee Nylon 1/4 x 1/4 x 1/4"

Item#: 91822

DOT Elbow Male Nylon 1/4 x 1/4-18

Item#: 91795

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Wheel House Molding Split Rivet Aluminum 3/16"

Item#: P68087

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Product Description

Parker's Prestomatic Fitting is a robust, all brass push-to-connect fitting that meets SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications, Parker Prestomatic fittings reduce assembly time versus compression style fittings by 90%.
Product Features
• Brass Collet
• Buna N O-ring
• Stainless Steel Tube Support
• Meets D.O.T. FMVSS571.106
• Meets SAE J2494 & SAE J2494-7
Specifications
• Pressure range: Up to 250 PSI
• Temperature range: –40° to +200° F (–40° to +93.3° C)I
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris
3. Mark tubing to appropriate tube insertion length.
4. Insert tubing until it bottoms.
5. Pull on tubing to verify it is fully inserted.
6. To disassemble, simply press release button, hold against body and pull tubing out of fitting.

Technical Specifications

Item#: 57502P
Fitting Type Air Brake Fittings - Push-to-Connect
Material Brass
Configuration Union Tee
Connection Type A x B x C Tube x Tube x Tube
Fitting Dimension A 1/4 "
Fitting Dimension B 1/4 "
Fitting Dimension C 1/4 "
Parker Reference No. 164PMT-4
UNSPSC #: 25171700
TAA Compliant: Yes
Weight: 0.87 lb
