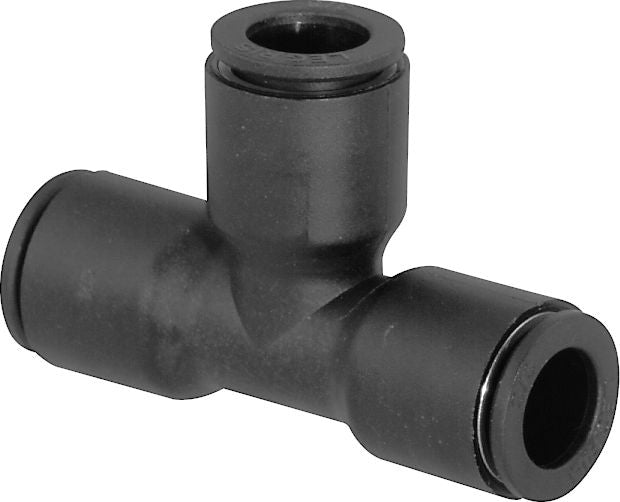

Push-to-Connect Tee, Nylon, 5/32" x 5/32" x 5/32" (4 mm), Tube x Tube x Tube, 290 PSI
(Pack of 3)

SKU:86785P Item#: 86785P

Parker Fluid Connectors Group

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Quantity

Frequently Bought Together

Compression Sleeve Brass 1/8" Tube

Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"

Merchant Coupling 316 Stainless Steel 1/2 x 1/2"

Monsoon Hose Nozzle 3/4"

Quick Disconnect Plug Steel 1/4" x 1/4-18

Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18

Push-to-Connect Connector Brass 3/8 x 3/8"

Push-to-Connect Tee Nylon 1/8 x 1/8 x 1/8"

Push-to-Connect Union Connector Polymer 3/8 x 3/8"

Item#: 1260531P

Radiator Grille Nut M4.2-1.41

Fender Splash Shield Retainer Nylon 20mm

Bumper Fascia Push-Type Retainer Nylon 18mm

Product Description

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	86785P
Manufacturer Model #:	3104 04 00
Style	Tee
Configuration	Tee
Tube Size	4mm (5/32")
Thread Size	4 mm
Material	Nylon Body
Working Pressure	290 PSI
Temperature Range	-4 to +175 °F
UNSPSC #:	40183100
TAA Compliant:	Yes
