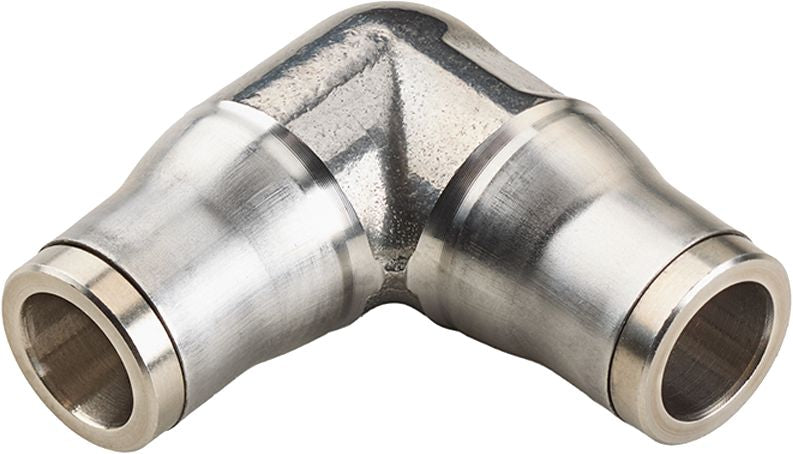

LF3800 Push-to-Connect Union Elbow, Stainless Steel, 3/8 x 3/8", Tube x Tube, 7 to 290PSI
(Pack of 5)

SKU:1199281 Item#: 1199281

Legris

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Quantity

Frequently Bought Together

Hex Head Plug Brass 3/8-18 Male NPT

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Pipe Nipple Brass 1/4-18 x 1/4-18

DOT Connector Male Brass 1/4 x 1/8-27

Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"

Item#: P28915M01

DOT Union Brass 1/4 x 1/4"

Push-to-Connect Union Nylon 3/8 x 3/8"

Push-to-Connect Branch Tee Nylon 5/32" x 5/32" x 1/8"

Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 1/2"

Front Fender Push-Type Retainer Nylon 20mm

Front Bumper Drive Rivet Plastic 7mm Hole

Fender Bumper Shield Retainer 11/16"

Product Description

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Technical Specifications

Item#:	1199281
Manufacturer Model #:	3802 60 00
Style	LF3800
Configuration	Union Elbow
Tube Size	3/8 "
Material	Stainless Steel
Working Pressure	7 to 290 PSI
Temperature Range	-4 to +245 °F
UNSPSC #:	40183100
TAA Compliant:	No
