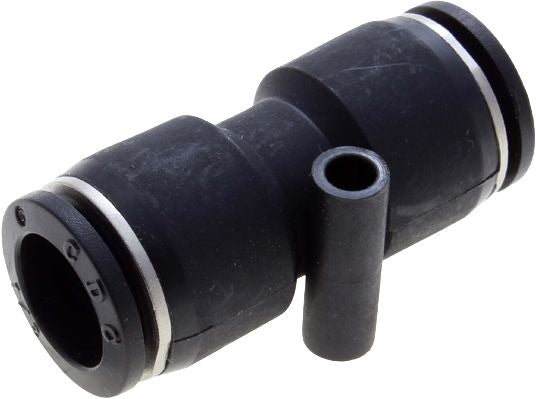

Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm, Tube x Tube, 150 PSI Working Pressure
(Pack of
5)
SKU:98209 Item#: 98209
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Bulkhead Union, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Pipe Hex Nipple Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Hex Bushing Steel 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Reducing Coupling Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-To-Connect Fitting, LF3000, Male Connector, 6mm Tube x 1/4 NPT
$0.00
Couldn't load pickup availability
Push-to-Connect Y Union Nylon 12 x 12 x 12 mm
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 98209 |
|---|---|
| Configuration | Union |
| Tube Size | 6 mm |
| Material | Nickel-Plated Brass/PBT Resin |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
Product Restrictions
