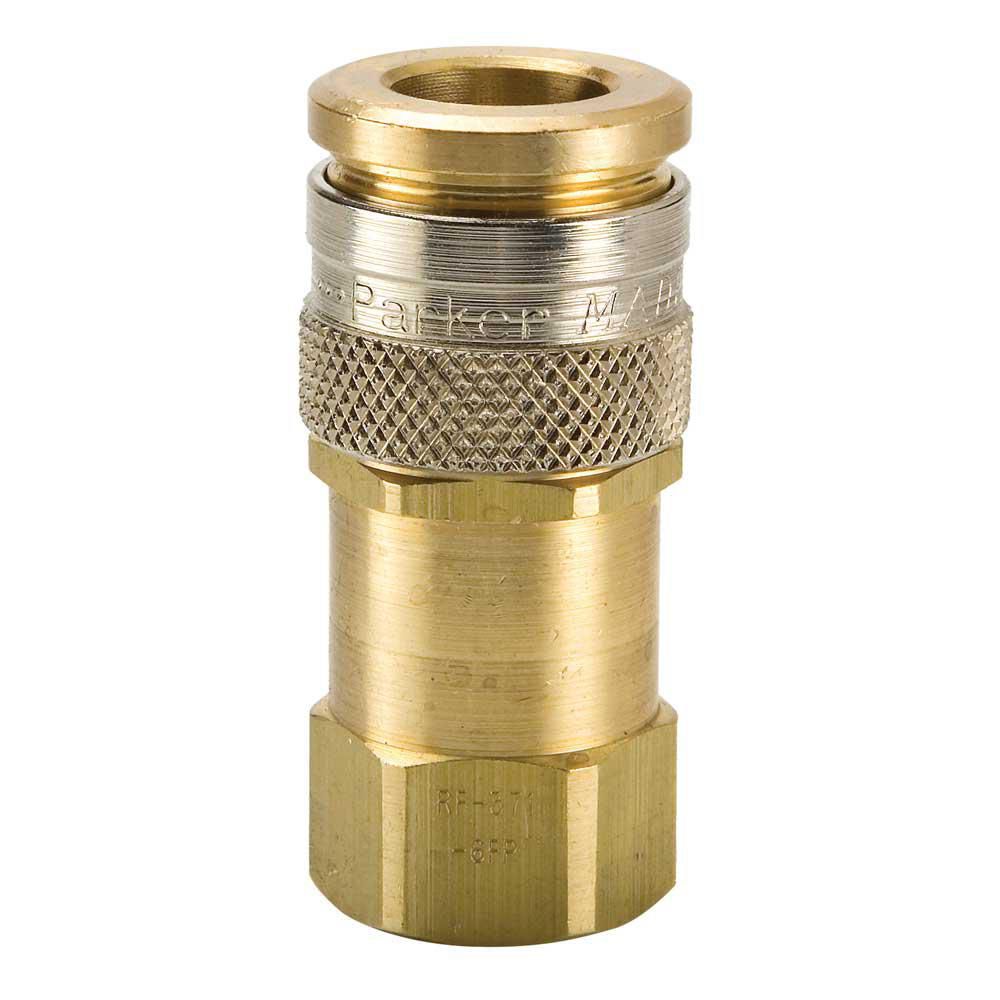

RF Series Coupler, Brass, European High-Flow, 300PSI, Female NPTF, 1/4" Body Size, 1/4-18 Thread Size
(Pack of
1)
SKU:1268626 Item#: 1268626
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.
• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Frequently Bought Together
Quick Disconnect Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 3/8" FNPT
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Hose End Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Humpback Reel Accessories - Foam Cannon
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
RF Series Pneumatic Couplers are designed to increase flow and reduce pressure drop through the coupling. RF nipples have up to 2-1/2 times larger flow area than standard industrial interchange nipples. The increased flow results in greater tool efficiency and decreased air costs. Couplers have brass bodies with nickel plated steel sleeves. RF nipples are steel.• Aerodynamic valve design
• Steel nipples are case hardened
• Flow rates on 1/4” is greater than many 3/8” body size couplers
• Flow rates on 3/8” is greater than many 1/2” body size couplers
• Integral sleeve guard protects against accidental disconnection
• Functionally interchanges with a common high-flow European design
• Air compressors
• Pneumatic tools
• Drop-down air lines
Technical Specifications
| Item#: | 1268626 |
|---|---|
| Manufacturer Model #: | RF-251-4FP |
| Type | Coupler |
| Style | European High-Flow |
| Body Size | 1/4 " |
| Thread Style | Female NPSF |
| Thread Size | 1/4-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 2.19 " |
| Seal Material | Nitrile |
| Hex Size | 0.81 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
Product Restrictions
