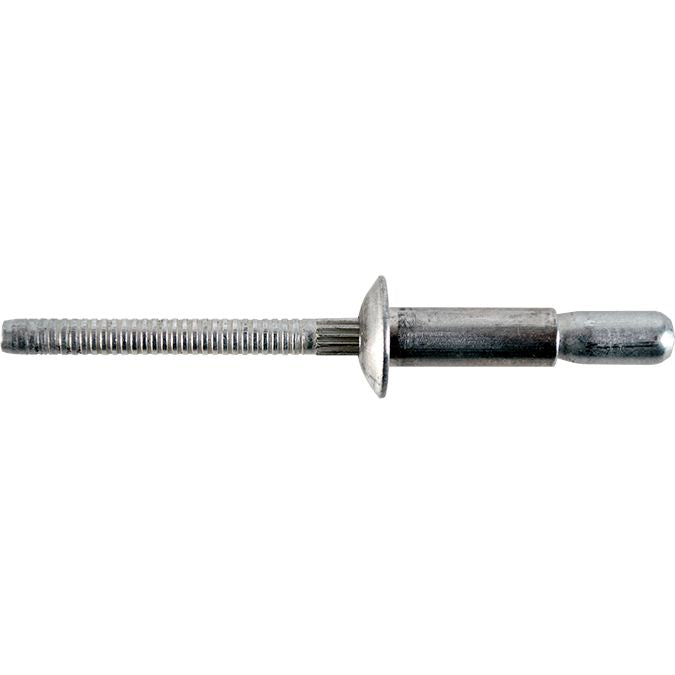

Structural Rivet, Internal Lock, Dome Head, Aluminum, 3/16" Diameter, 0.062 to 0.27" Grip Range, 0.415" Body Length
(Pack of
50)
SKU:90479 Item#: 90479
Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
$0.00
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Sheet Metal Screw Phillips Truss Head #14 x 3/4"
$0.00
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Steel 3/16"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 90479 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.270 " |
| Hole Size | 0.191 – 0.201 " |
| Drill Size | #10 |
| Head Diameter | 0.385 " |
| Head Height | 0.085 " |
| Body Length | 0.415 " |
| Shear Strength | 550 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
