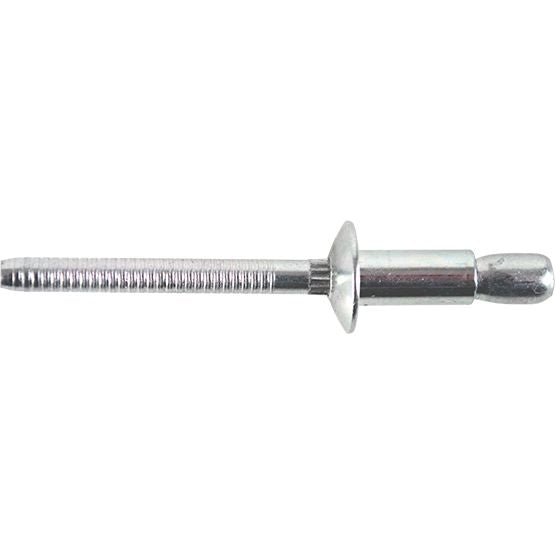

Structural Rivet, Internal Lock, Dome Head, Steel, 3/16" Diameter, 0.062 to 0.437" Grip Range, 0.572" Body Length
(Pack of
500)
SKU:1543647 Item#: 1543647

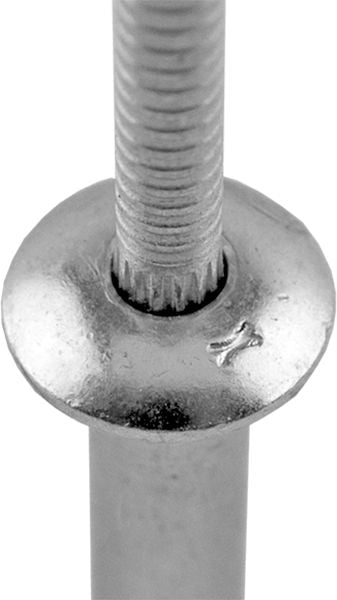

Dome Head
• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Frequently Bought Together
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 40mm
$0.00
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Lockbolt 3/16"
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 3/16"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• The mandrel is retained within the shear plane providing high strength under shear loads
• The internal lock insures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• Standard nosepieces can be used for installation
Technical Specifications
| Item#: | 1543647 |
|---|---|
| Type | Structural – Internal Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Steel/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.437 " |
| Hole Size | 0.194 – 0.204 " |
| Drill Size | #10 |
| Head Diameter | 0.375 " |
| Head Height | 0.085 " |
| Body Length | 0.572 " |
| Shear Strength | 1,300 lb |
| Tensile Strength | 1,000 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 5.0 lb |
