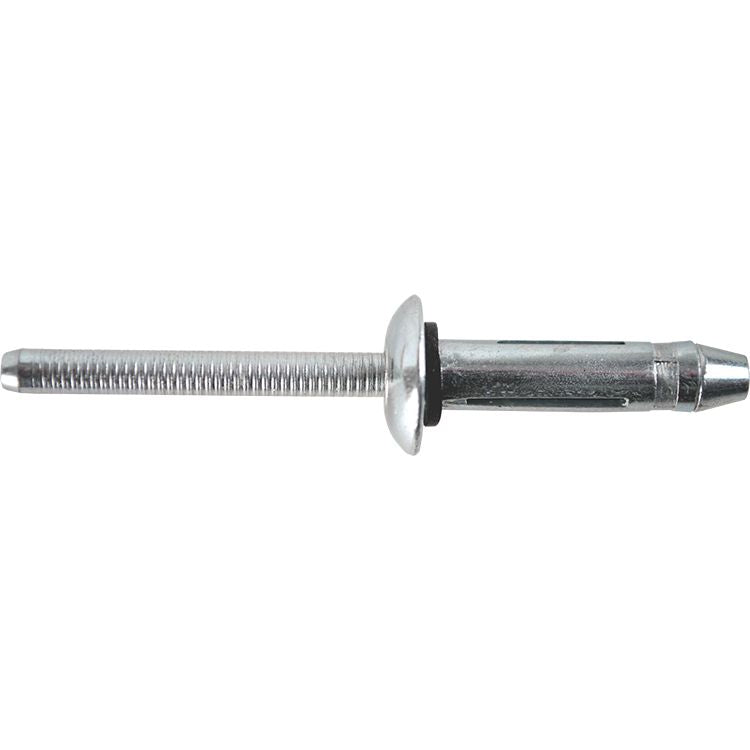

SupraTITE® Structural Tri-Fold Rivet, Rubber Washer, Dome Head, Steel, 1/4" Diameter, 0.25 to 0.5" Grip Range, 1.255" Body Length
(Pack of
100)
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Frequently Bought Together
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
Hex Nut Grade 8 Steel M8-1.25
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Replacement Jaw Set for 51898 Rivet Tool
Couldn't load pickup availability
Pull Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 1/4"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application.They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
• Rubber washer under the head provides additional sealing capabilities
Technical Specifications
| Item#: | 1543660 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.250 – 0.500 " |
| Hole Size | 0.250 – 0.263 " |
| Drill Size | F |
| Head Diameter | 0.550 " |
| Head Height | 0.125 " |
| Body Length | 1.255 " |
| Shear Strength | 1,250 lb |
| Tensile Strength | 950 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 2.54 lb |
