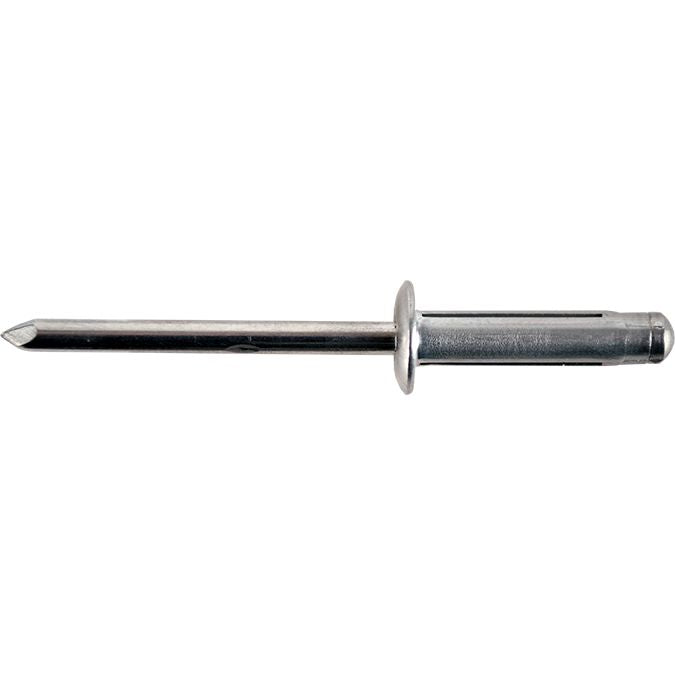

Tri-Fold Rivet, Dome Head, Aluminum, 3/16" Diameter, 0.157 to 0.472" Grip Range, 1.07" Body Length
(Pack of
100)
SKU:1543658 Item#: 1543658
Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
Catalog page#: 11-116
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 35mm
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet Steel 1/4"
Couldn't load pickup availability
HuckBolt® Magna-Grip® Rivet Collar Flanged 3/16"
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 1/4"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
Product Description
Dome Head• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543658 |
|---|---|
| Type | Tri-Fold |
| Head Style | Dome Head |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.157 – 0.472 " |
| Hole Size | 0.196 – 0.209 " |
| Head Diameter | 0.386 " |
| Head Height | 0.062 " |
| Body Length | 1.070 " |
| Shear Strength | 202 lb |
| Tensile Strength | 269 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.45 lb |
