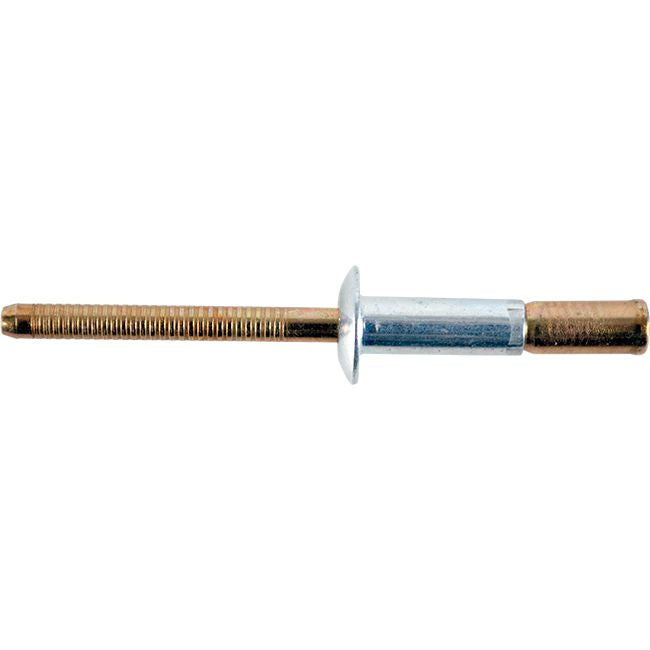

Tigerbolt® Structural Rivet, External Lock, Dome Head, Steel, 1/4" Diameter, 0.08 to 0.375" Grip Range, 0.422" Body Length
(Pack of
50)
SKU:1543634 Item#: 1543634
Dome Head

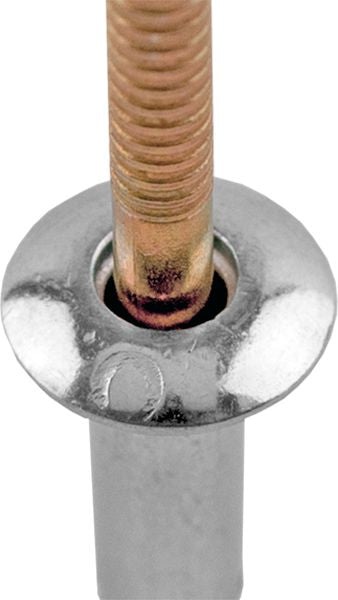

• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Frequently Bought Together
Open End Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 16mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 1/4"
$0.00
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 1/4"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
$0.00
Couldn't load pickup availability
Product Description
Dome Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in manufacturing or truck body repair
• Interchangeable with Monobolts®
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543634 |
|---|---|
| Manufacturer Model #: | SBS-86-TB |
| Type | Structural – External Lock |
| Head Style | Dome Head |
| Material Body / Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.080 – 0.375 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.530 " |
| Head Height | 0.117 " |
| Body Length | 0.422 " |
| Shear Strength | 2,675 lb |
| Tensile Strength | 2,360 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.9921 lb |
