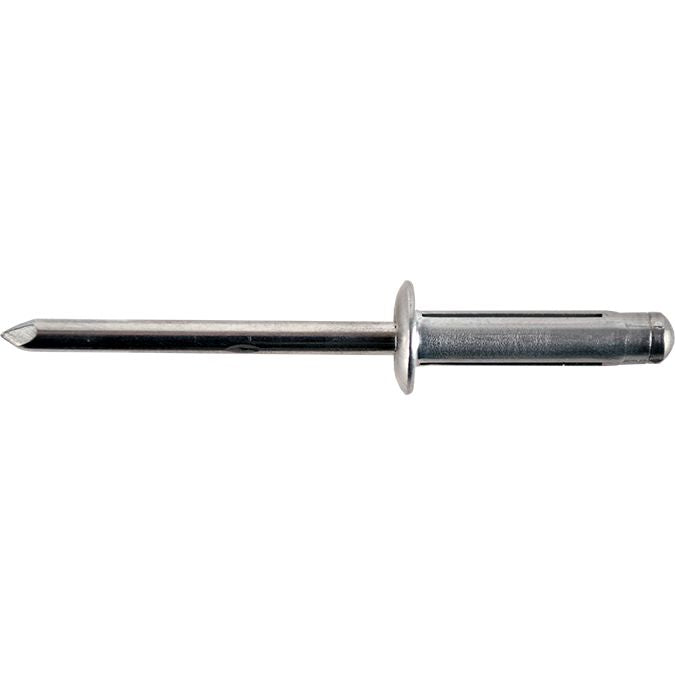

Tri-Fold Rivet, Dome Head, Aluminum, 3/16" Diameter, 0.04 to 0.354" Grip Range, 0.906" Body Length
(Pack of 100)

Item#: 90485

Kent Automotive

Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Read More
Check Availability

Catalog page#: 11-116

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M8-1.25 x 25mm

Item#: 28687

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

Open End Rivet Dome Head Aluminum 5/32"

Item#: 1968

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1965

Open End Rivet Dome Head Aluminum 1/8"

Item#: 1966

Open End Rivet Dome Head Aluminum 1/8"

Item#: 41612

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Front Bumper Trim Panel/Running Board Split Rivet

Item#: KT13527

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

SupraTITE® Structural Tri-Fold Rivet Steel 3/16"

Item#: 1543661

SupraTITE® Structural Tri-Fold Rivet Steel 1/4"

Item#: 1543659

SupraTITE® Structural Tri-Fold Rivet 3/16"

Item#: 1543665

Product Description

Dome Head
• Body splits out into three legs at the back side
• The extended bearing surface spreads the load over a wider area to prevent pull-out
• Ideal for use in plastic, brittle or low-strength materials
• Large grip range accommodates wide variations in material thickness
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications

Technical Specifications

Item#: 90485
Type Tri-Fold
Head Style Dome Head
Material Body / Mandrel Aluminum/Aluminum
Diameter 3/16 "
Grip Range 0.040 – 0.354 "
Hole Size 0.196 – 0.209 "
Head Diameter 0.386 "
Head Height 0.062 "
Body Length 0.906 "
Shear Strength 202 lb
Tensile Strength 269 lb
UNSPSC #: 31162201
TAA Compliant: Yes
Weight: 0.39 lb
