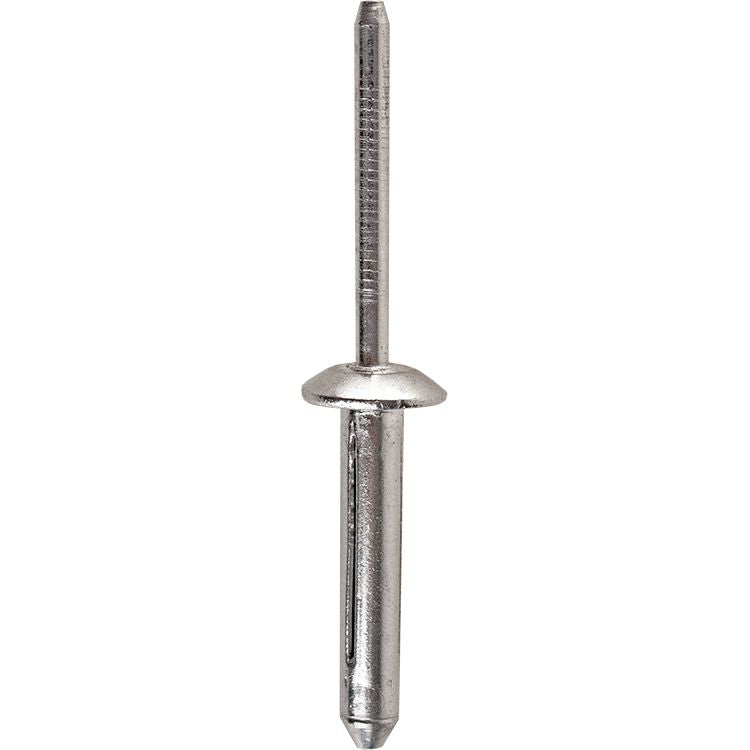

SupraTITE® Structural Tri-Fold Rivet, Dome Head, Aluminum, 3/16" Diameter, 0.312 to 0.5" Grip Range, 1.157" Body Length
(Pack of
100)
SKU:1543666 Item#: 1543666
Dome Head
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
Couldn't load pickup availability
Catalog page#: 11-116
Frequently Bought Together
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
Couldn't load pickup availability
Hammerlock Cotter Pin Kit 140Pcs
Couldn't load pickup availability
Open End Rivet Dome Head Stainless Steel 3/16"
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Tri-Fold Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 3/16"
Couldn't load pickup availability
SupraTITE® Structural Tri-Fold Rivet 1/4"
Couldn't load pickup availability
Product Description
Dome Head• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Often used in the truck trailer industry to join very thin sheets of aluminum or steel where there isn’t access on both sides of the application. They are also used to laminate the trailer body skin from one side of the trailer.
• Split tail formation spreads the tail-bearing load on the rear sheet
• Ideal for use in thin materials
• Excellent multi-grip range
Technical Specifications
| Item#: | 1543666 |
|---|---|
| Type | Structural Tri-Fold |
| Head Style | Dome Head (Recessed Crown) |
| Material Body / Mandrel | Aluminum/Aluminum |
| Diameter | 3/16 " |
| Grip Range | 0.312 – 0.500 " |
| Hole Size | 0.209 – 0.221 " |
| Drill Size | #4 |
| Head Diameter | 0.492 " |
| Head Height | 0.099 " |
| Body Length | 1.157 " |
| Shear Strength | 675 lb |
| Tensile Strength | 450 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.485 lb |
