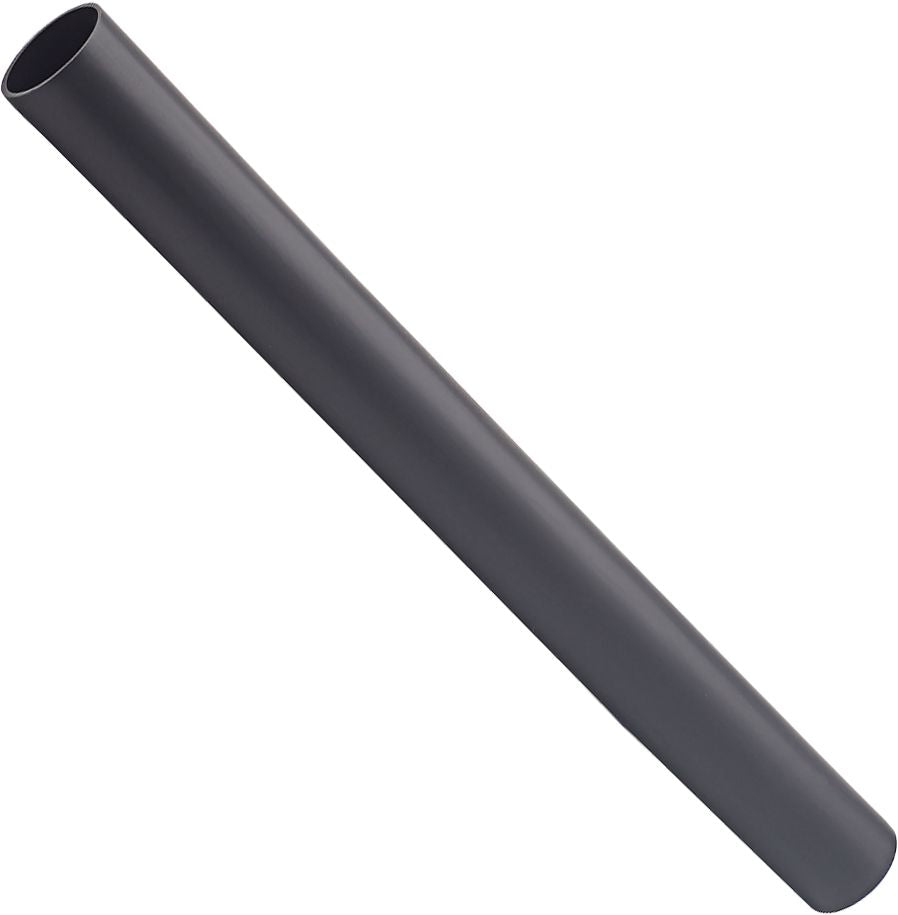

Tru-Shrink Heat Shrink Tubing, 4 to 1/0 AWG, Black, 3/4" Diameter, 6" Length, 0.75" ID Before and 0.375" ID After Shrinkage
(Pack of
10)
SKU:61661 Item#: 61661
• 2:1 shrink ratio
• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 2-6
Frequently Bought Together
Miniature Incandescent Bulb 12V 37CP
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Heat Shrink Tubing 3/0 to 12/3 SJO AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 22 to 20 AWG Black
Couldn't load pickup availability
Heat Shrink Tubing 8 to 2 AWG Black
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Woven Polyester Electrical Tape 19mm x 25m
Couldn't load pickup availability
Electrical Tape Assortment with Dispenser 15Pcs
Couldn't load pickup availability
Rubber Grommet 5/8" ID
Couldn't load pickup availability
Rubber Grommet 1/2" ID
Couldn't load pickup availability
Product Description
• 2:1 shrink ratio• Easily assembled over components, connectors or other irregular shapes
• Flame-retardant
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Meets or exceeds MIL-1-23053 D/5, Class I, II and III; AMS 3636C and AMS 3637B requirements
• Tensile strength: 1,500 PSI
• Elongation: 200%
• Dielectric strength: 500V/mil
• Volume resistivity: 1015 Ohm/cm
• Heat shock: Four hours at 482°F (250°C)
• Low temperature flexibility: Four hours at –67°F (–55°C)
• Longitudinal change: Less than 5%
• Secant modulus: 12,000 PSI
• Rated at 600V
• Use as electrical insulation over cable splices and terminations, and for wire harness covering, bundling and wire marker identification
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 61661 |
|---|---|
| Type | Pre-Cut |
| Style | Thin Wall |
| Wire Gauge Coverage | 4-1/0 AWG |
| Diameter | 3/4 " |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | 0.750 " |
| I.D. After Shrinkage | 0.375 " |
| Wall Thickness After Shrinkage | 0.030 " |
| Dielectric Strength | 500 V/mm |
| Voltage Rating | 600 V |
| Elongation | 200 % |
| Tensile Strength | 1,500 PSI |
| Heat Shock | 4 hours at 482 degrees F |
| Secant Modulus | 12,000 PSI |
| Longitudinal Change | Less than 5% |
| Approvals | CSA, UR and Meets or exceeds MIL-1-23053 D/5, Class I, II and II; AMS 3636C and AMS 3637B requirements |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
