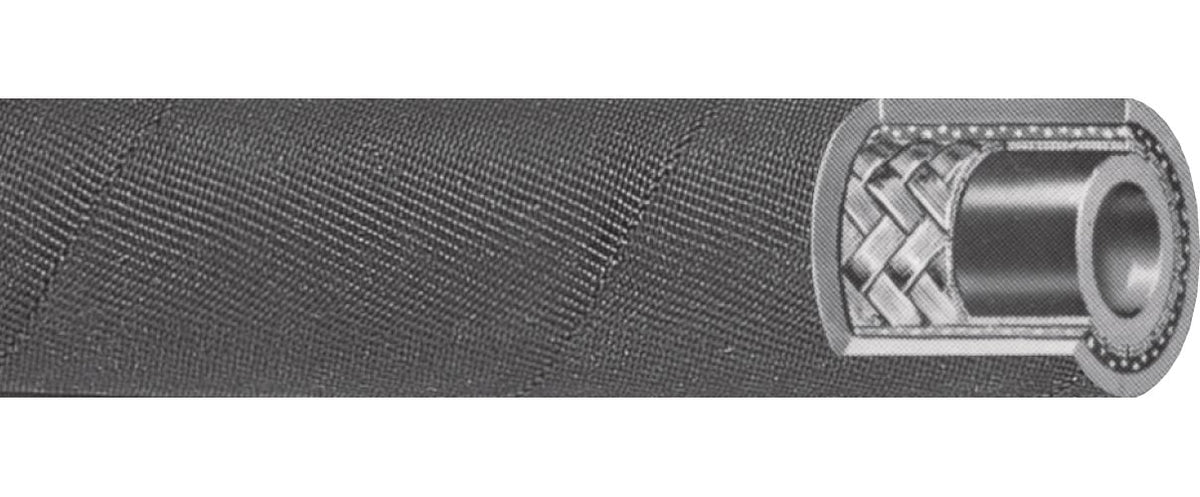

Weatherhead H190 Hydraulic Hose, Vinyl Nitrile, 1-Steel Braided, 1/2" ID, 0.81" OD, 250' Length, 2900PSI, SAE 100R1
(Pack of
250)
SKU:50788 08 Item#: 50788 08
• Agency Ratings: SAE 100R1 Type AT EN 853 Type 1SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Hydraulic Service• Construction: – Inner Tube: Nitrile – Reinforcement: One steel braid– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)
• Application Notes:
– For medium-pressure hydraulic lines; including agricultural
– Provides higher pressure ranges than H104 hose
– Upgraded pressure ratings
Frequently Bought Together
M2T Hydraulic Hose Rubber 0.82" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
$0.00
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
$0.00
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 50'
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
M2T Hydraulic Hose Rubber 0.82" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R1 Type AT EN 853 Type 1SN• Fittings Certified: Z-Series• Agency Approvals: MSHA, ISO 1436a, Marine Application J1942/1 Hydraulic Service• Construction: – Inner Tube: Nitrile – Reinforcement: One steel braid– Cover: Vinyl nitrile – eight times better abrasion resistance• Temperature Range:– Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)– Water-based hydraulic fluids: –40°F to +158°F (–40°C to +70°C)– Water: 32°F to 158°F (0°C to 70°C)• Application Notes:
– For medium-pressure hydraulic lines; including agricultural
– Provides higher pressure ranges than H104 hose
– Upgraded pressure ratings
Technical Specifications
| Item#: | 50788 08 |
|---|---|
| Manufacturer Model #: | H19008-250R |
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | Medium Pressure |
| Industry Rating 1 | SAE 100R1S |
| Industry Rating 2 | EN 853 1SN |
| Industry Rating | MSHA, ISO1436a, Marine Application J1942/1 Hydraulic Service |
| Manufacturer Series Number | H190 |
| Manufacturer Series Name | WeatherSHIELD |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.81 " |
| Working Pressure | 2,900 PSI |
| Burst Pressure | 11,600 PSI |
| Fitting Series | Z Series |
| Bend Radius | 7 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 1 Steel Braid |
| Hose Cover Material | Vinyl Nitrile |
| Temperature | High |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | Petroleum based fluids -40F to +260F, Water based fluids -40F to +158F, Water +32F to +158F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 90.0 lb |
