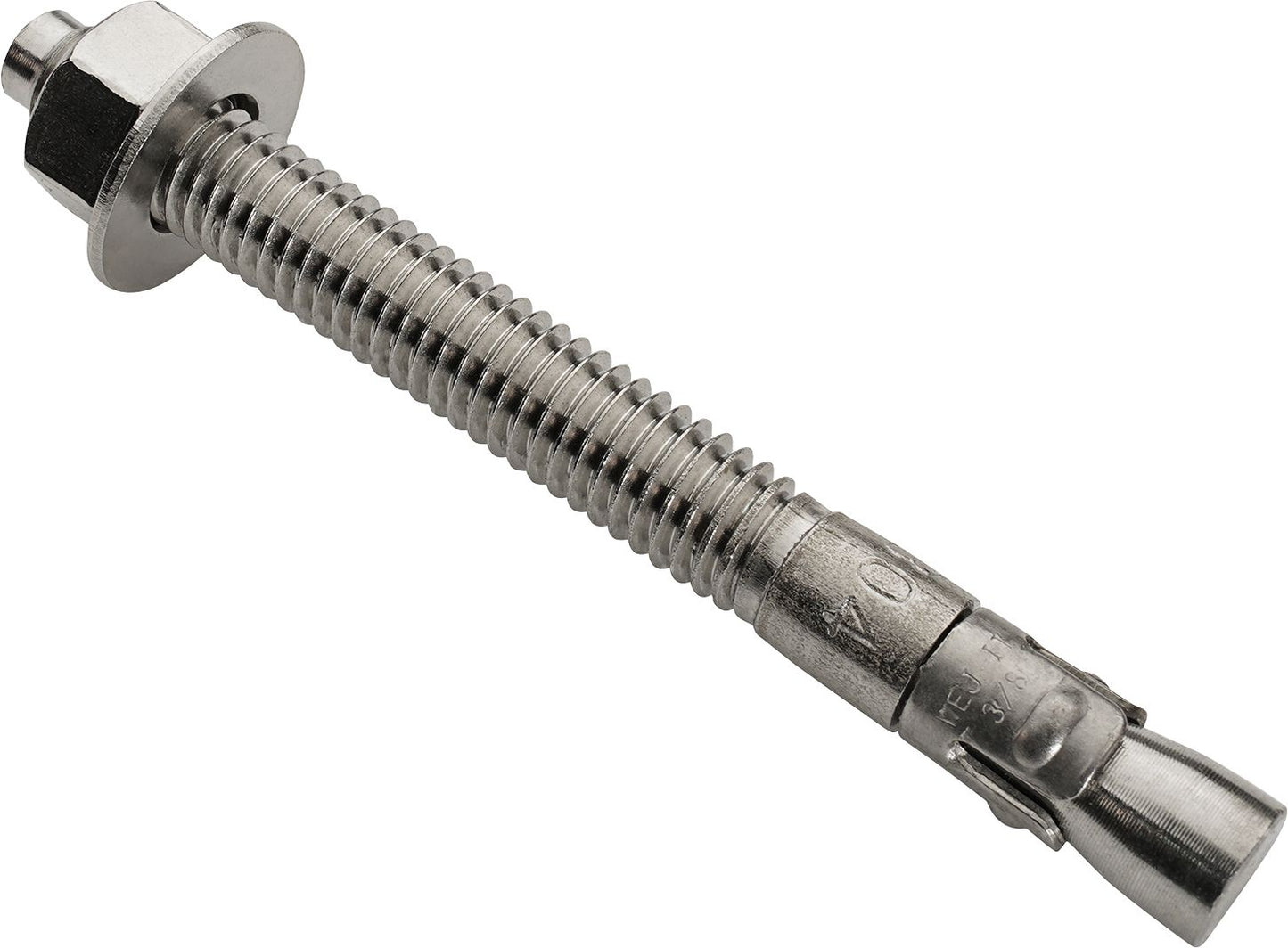

Wedge Type Stud Bolt Anchor SS 3/8 x 3-3/4"
(Pack of
10.0)
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Light-Medium Duty Anchor Assortment 555Pcs
Couldn't load pickup availability
1/2x2-1/2 Mas-Tap Hd Anchor
Couldn't load pickup availability
Masonry Anchor Phillips Head #14-10 x 2-3/4"
Couldn't load pickup availability
Self-Drilling Screw Phillips #10-16 x 3/4"
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M8
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M6
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 3/8 x 5"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 3/4 x 5-1/2"
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 5/8 x 3-1/2"
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91627 |
|---|---|
| Diameter | 3/8 " |
| Length | 3-3/4 " |
| Thread Length | 2-1/2 " |
| Drill Size | 3/8 " |
| Material | Stainless Steel |
| Finish | Plain |
| Type | Wedge Anchor |
| Proof Test Load | 2,420 lb |
| Length Identification Code | E |
| Size | 3/8X3-3/4 " |
| Minimum Embedment | 1-3/4 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 1.12 lb |
Product Restrictions
