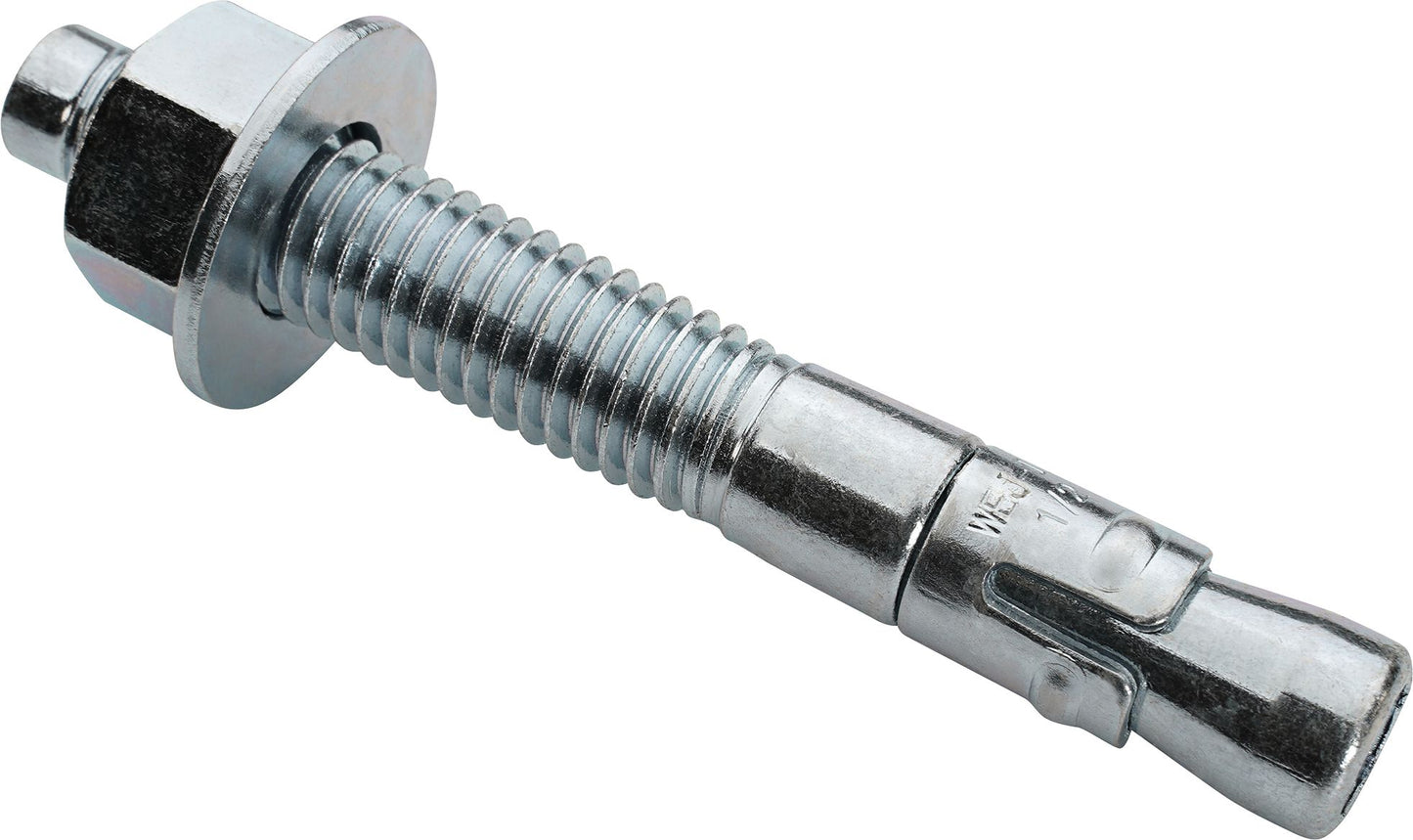

Wedge Type Stud Bolt Anchor, Steel, Zinc Finish, 1/2 x 3-3/4"

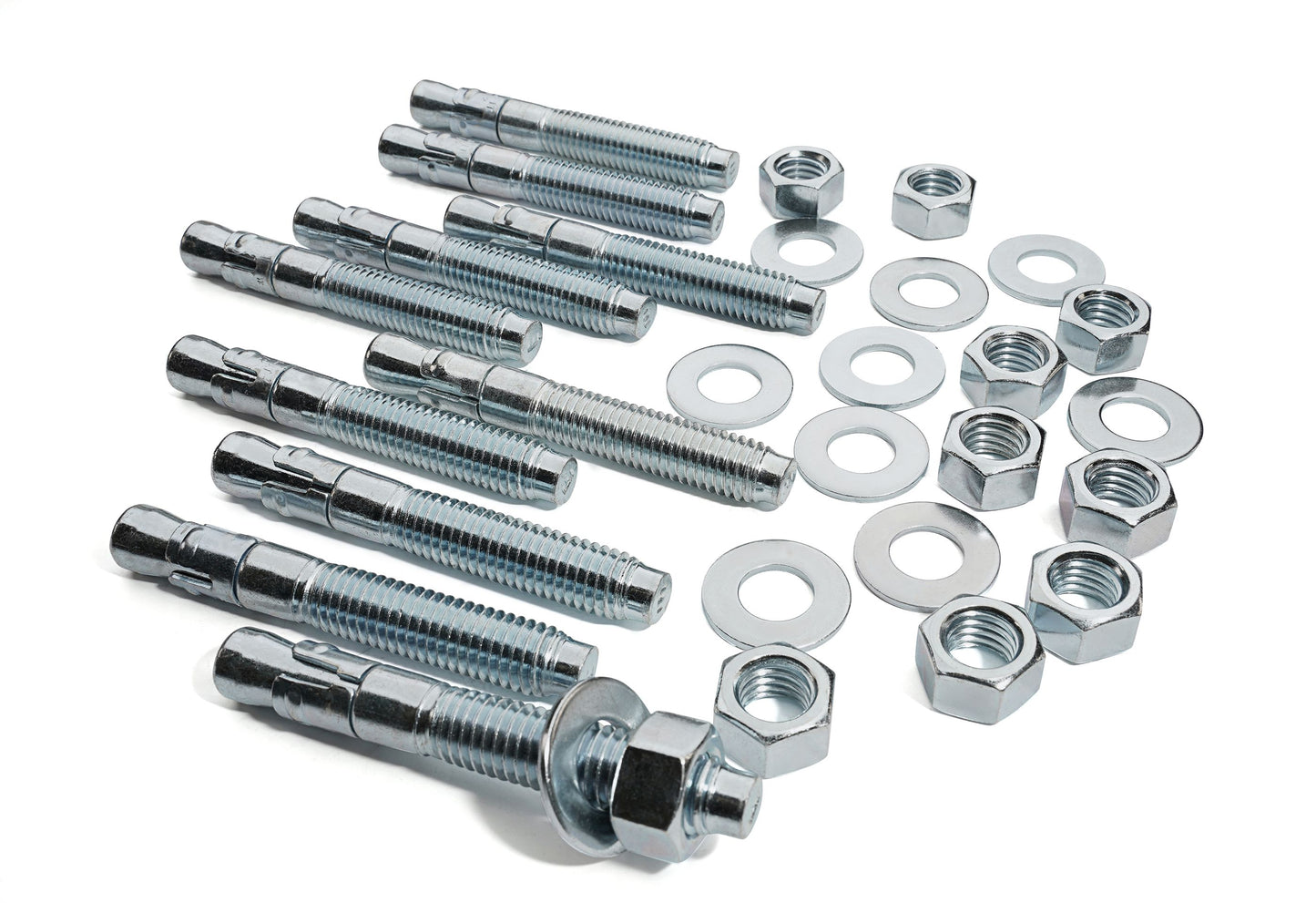

(Pack of
10)
SKU:91605 Item#: 91605
• Available in zinc-plated steel and stainless steel
1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Frequently Bought Together
Masonry Anchor Assortment 243Pcs
$0.00
Couldn't load pickup availability
Wallboard Anchor Assortment 1125Pcs
$0.00
Couldn't load pickup availability
Masonry Anchor Assortment 243Pcs
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
$0.00
Couldn't load pickup availability
Blind Rivet Nut Insert Thin Wall M6-1
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 1/4 x 3-1/4"
$0.00
Couldn't load pickup availability
Wedge Type Anchor Bolt Steel 1/4 x 3"
$0.00
Couldn't load pickup availability
Wedge Type Stud Bolt Anchor SS 3/4 x 4-1/4"
$0.00
Couldn't load pickup availability
Product Description
• Available in zinc-plated steel and stainless steel1. Drill hole of proper diameter in concrete. Drilled hole can be any depth beyond minimum recommended depth.
2. Drive Wedge Anchor into drilled hole through fixture until nut is flush with fixture.
3. Tighten nut until wrench resistance is felt (approximately three to four full turns past the hand-tight position). Anchoring is now complete.
Technical Specifications
| Item#: | 91605 |
|---|---|
| Diameter | 1/2 " |
| Length | 3-3/4 " |
| Thread Length | 2-1/8 " |
| Drill Size | 1/2 " |
| Material | Carbon Steel |
| Finish | Bright Zinc |
| Type | Wedge Anchor |
| Proof Test Load | 3,400 lb |

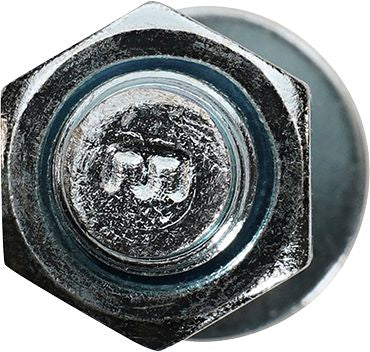

| Length Identification Code | E |
| Size | 1/2X3-3/4 " |
| Minimum Embedment | 2-1/8 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | No |
| Weight: | 2.31 lb |
