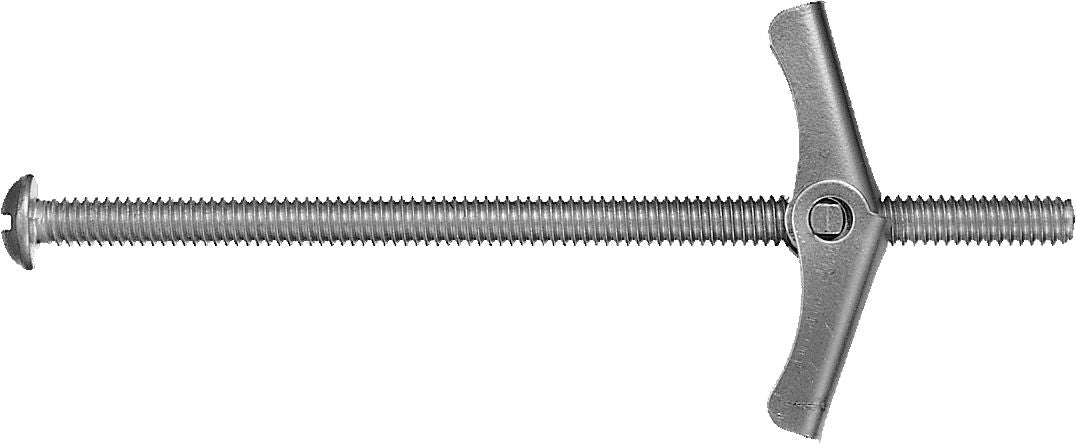

Wing-Type Toggle Bolt Anchor, Round Head, Steel, Zinc Finish, 5/8" Drill Size, 1/4-20 x 6"
(Pack of
25)
SKU:25152 Item#: 25152
Toggle Bolt Assemblies
• Better spring action and more thread engagement
1. Insert bolt through item to be fastened, thread on wings, then fold wings completely back and insert through hole until wings spring open.
2. Pull back on assembly to hold wings against inside wall – this prevents the wings from spinning while tightening bolt. Tighten bolt firmly with screwdriver.
Frequently Bought Together
Drop-In Anchor Steel 1/2 x 2"
$0.00
Couldn't load pickup availability
Masonry Anchor Hex Washer Head Steel 5/16 x 1-3/4"
$0.00
Couldn't load pickup availability
Masonry Anchor Phillips Head #14-10 x 2-1/4"
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M12-1.75
$0.00
Couldn't load pickup availability
Hex Flange Nut Grade 8 Steel M8-1.25
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M6-1
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Tamper-Proof Nail Drive Anchor Steel 1/4 x 2"
$0.00
Couldn't load pickup availability
Tubular Anchor Plastic Orange #16 to #18
$0.00
Couldn't load pickup availability
Wing-Type Toggle Bolt Anchor Steel 1/4-20 x 5"
$0.00
Couldn't load pickup availability
Product Description
Toggle Bolt Assemblies• Better spring action and more thread engagement
1. Insert bolt through item to be fastened, thread on wings, then fold wings completely back and insert through hole until wings spring open.
2. Pull back on assembly to hold wings against inside wall – this prevents the wings from spinning while tightening bolt. Tighten bolt firmly with screwdriver.
Technical Specifications
| Item#: | 25152 |
|---|---|
| Length | 6 " |
| Type | Wall Anchor |
| Size | 1/4X6 " |
| Diameter | 1/4 " |
| Material | Steel |
| Head Style | Round |
| Finish | Zinc |
| Thread | Coarse |
| Thread Pitch | 20 |
| Drill Size | 5/8 " |
| Anchor Size | 1/4 x 6 " |
| Tensile Proof Test Load In Concrete | 600 lb |
| Shear Proof Test Load | 600 lb |
| Bolt Size | 1/4-20 x 6 " |
| UNSPSC #: | 31162103 |
| TAA Compliant: | No |
| Weight: | 2.3 lb |
