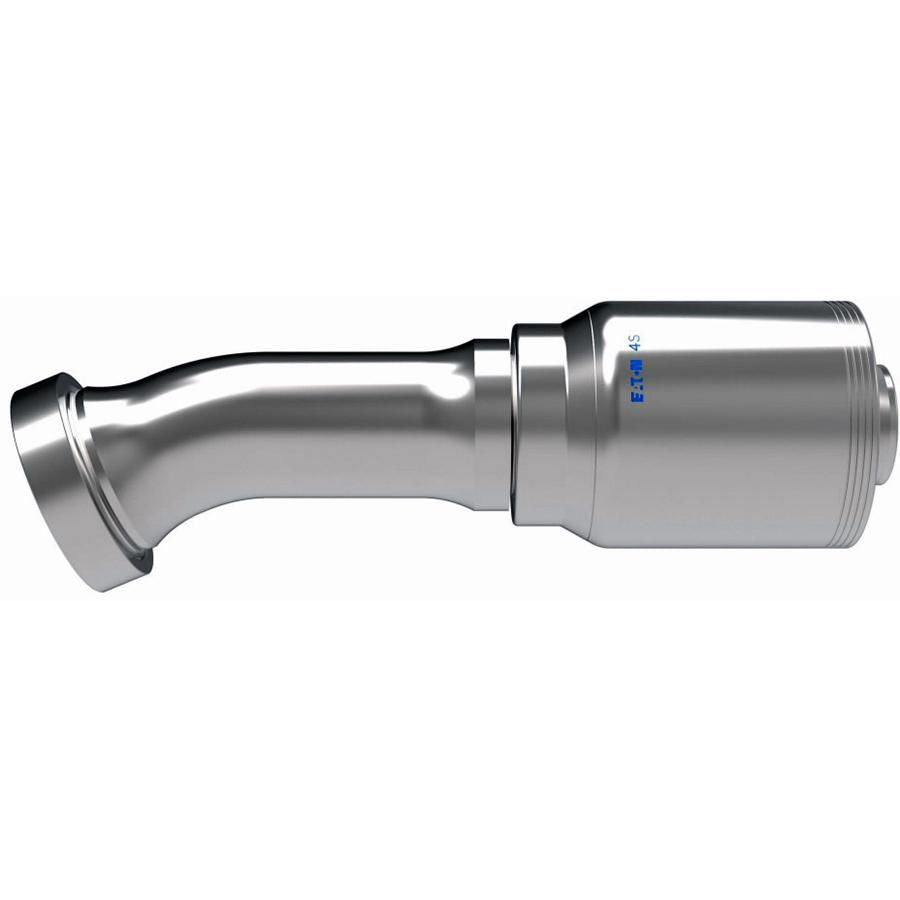

Z Series Split Flange Split Flange Code 61 22.5 ° 1 (-16)x 1.75 Crimp-on End Fitting
(Pack of
1)
SKU:16814 Item#: 16814
SAE Code 61 Flange Kits sold separately
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Product Description
SAE Code 61 Flange Kits sold separatelyThese fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 16814 |
|---|---|
| Manufacturer Model #: | 16Z-H03 |
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1 (-16) " |
| Dash Size | -16 |
| Gender | Split Flange |
| Fitting End Style | Split Flange Code 61 |
| Fitting End Type | Code 61 |
| Fitting Angle | 22.5 Degrees |
| Fitting Dimension B (Working End) | 1 (-16) |
| Flange Diameter | 1.75 " |
| Weatherhead No. | 16Z-H03 |
| O.D. Tube Size | 1 |
| Size | (-16)X(-16) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 1.06 lb |
