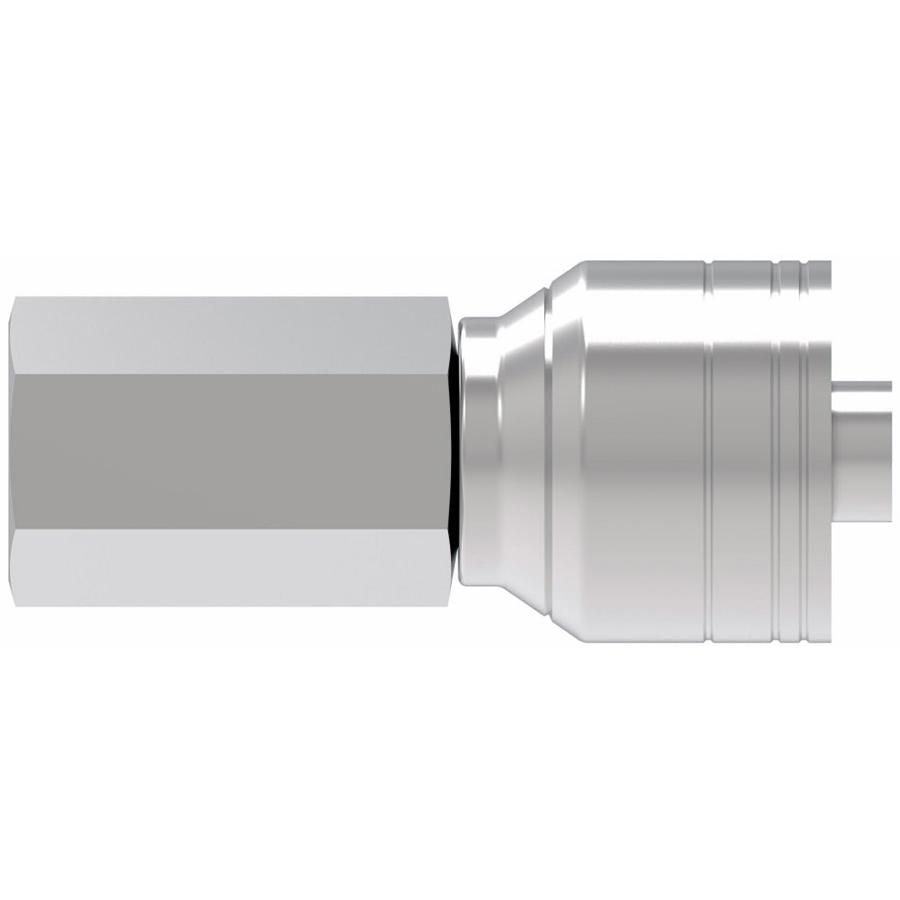

Z Series Hydraulic Crimp-On Hose End, Straight, Carbon Steel, Female Rigid Pipe NPTF, 3/8 (-6) x 1/4-18 (-4)
(Pack of
1)
SKU:20628 Item#: 20628
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
Item#: 1644084
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
Item#: 1692579
$0.00
Couldn't load pickup availability
4T Series Crimp-On Hose End 3/4" x 1-1/16-12
Item#: 1692578
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN 10.8 x 14.4mm
Item#: KT13015
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 4 x 2-1/2" Yellow
Item#: 62379
$0.00
Couldn't load pickup availability
Hydraulic Hose Protector 8 x 3-1/2" Black
Item#: 62378
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Item#: 54542
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Item#: P64102M01
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"
Item#: P28910M01
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
Item#: 1579409
$0.00
Couldn't load pickup availability
Product Description
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.Technical Specifications
| Item#: | 20628 |
|---|---|
| Manufacturer Model #: | 06Z-204 |
| Manufacturer Series Number | Z Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Female |
| Fitting End Style | Pipe NPTF |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 1/4-18 (-4) |
| Weatherhead No. | 06Z-204 |
| Size | (-6)X(-4) |
| Hex Size | 3/4 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.21 lb |
