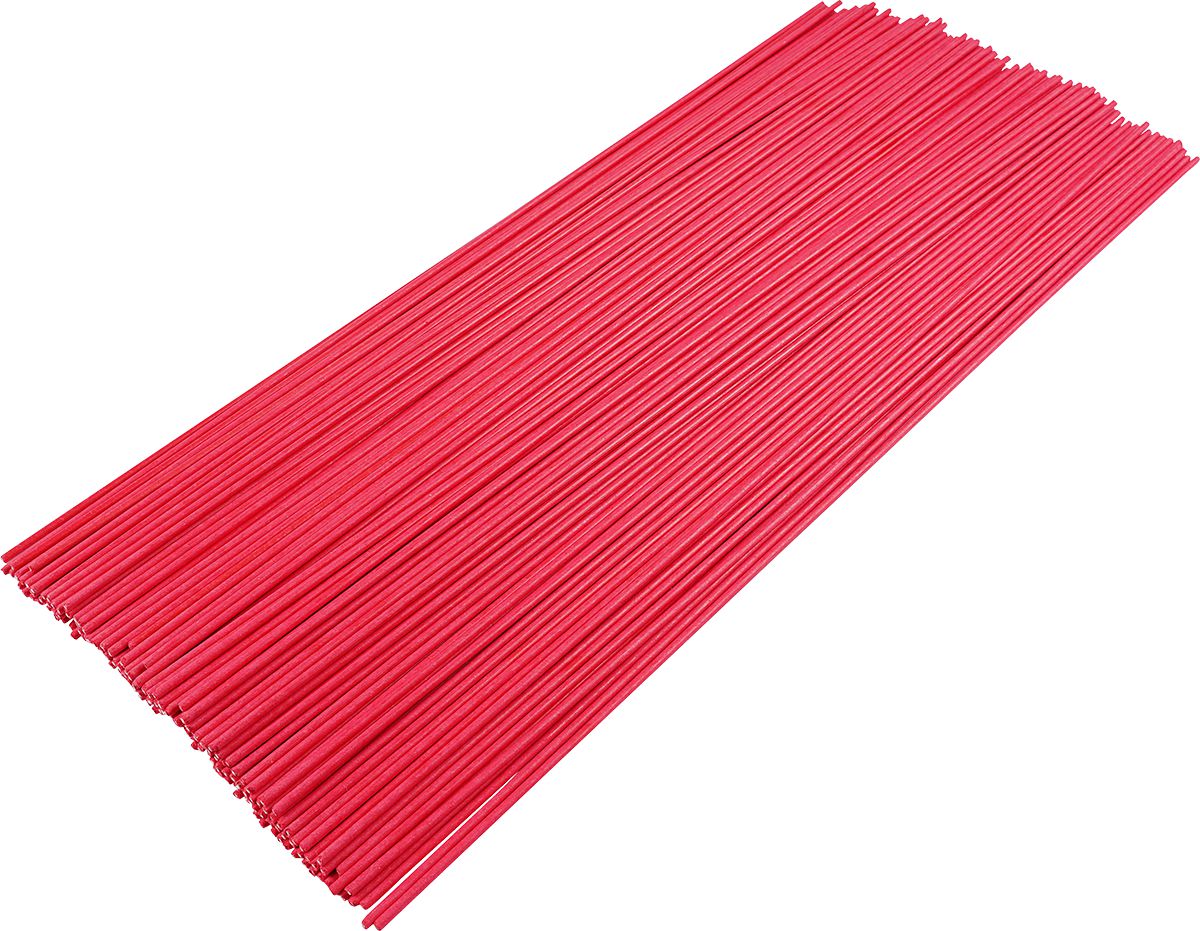

202Xl Red Flux Coated Brazing Alloy 3/16
(Pack of
5.0)
A flux-coated brazing alloy that allows easy application for joining and buildup, and provides high tensile strength and superior elongation.
• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Phosphorous-free, non-fuming
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free
• Corrosion resistant
• Joint Strength: Up to 100,000 PSI/689 MPa
• Hardness: 120 BHN
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1686°F/918°C
• Electrical Conductivity: 8% IACS
• Flux Coating Color: Red
• Machinability: Excellent
Frequently Bought Together
264 Bare High Silver Cadium Free Alloy 1/16x18
Couldn't load pickup availability
201 The Elite Bare Brazing Alloy 1/16X18
Couldn't load pickup availability
40 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
201 The Elite Blue Flux Coated Brazing Alloy 1/16
Couldn't load pickup availability
201 The Elite Bare Brazing Alloy 1/16X18
Couldn't load pickup availability
44 Silver Bare Brazing Rod 3/32"
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Heat Stick 400F Degrees
Couldn't load pickup availability
710 Stainless Steel Electrode 3/32"
Couldn't load pickup availability
Heat Stick 250F Degrees
Couldn't load pickup availability
Product Description
A flux-coated brazing alloy that allows easy application for joining and buildup, and provides high tensile strength and superior elongation.• Narrow Plastic Range – Allows control of the heat input to build up, shape or flow into joints
• Phosphorous-free, non-fuming
• Versatile – Joins steel, copper, brass, bronzes, cast iron, tungsten carbide, refractory metals and nickel alloys
• Cadmium free
• Corrosion resistant
• Joint Strength: Up to 100,000 PSI/689 MPa
• Hardness: 120 BHN
• Plastic Range: Approximately 30°F/17°C
• Working Temp: Approximately 1686°F/918°C
• Electrical Conductivity: 8% IACS
• Flux Coating Color: Red
• Machinability: Excellent
Technical Specifications
| Item#: | EG20220000 |
|---|---|
| Welding Process | Brazing |
| Type | Flux-Coated Brazing Rod |
| Diameter | 3/16 " |
| Length | 18 " |
| Tensile Strength | 100,000 PSI |
| Color | Red |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 6.21 lb |
