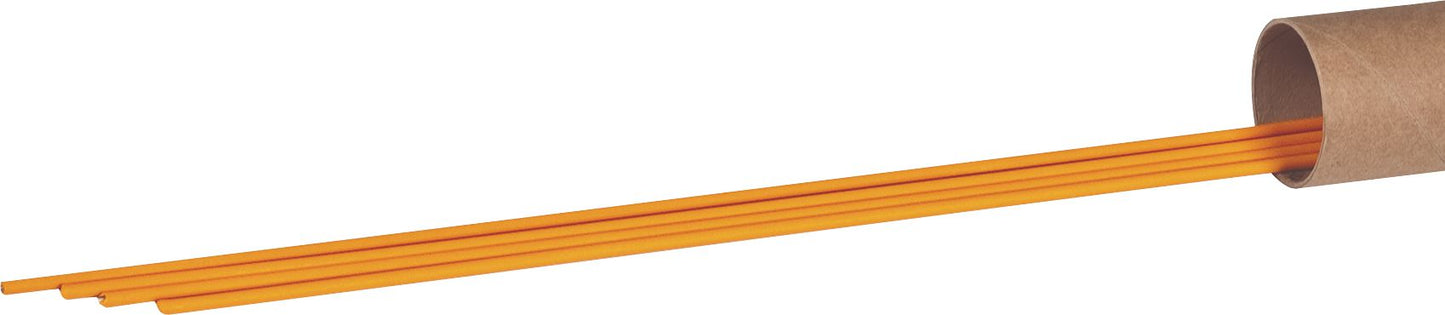

40 High Silver Flux Coated Brazing Rod, Orange, 18" Length, 1/16"
(Pack of
6)
SKU:CW1025 Item#: CW1025
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.
Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Flux Coating Color: Orange
Tensile Strength: 85,000 PSI
Melting Temperature: 1,140°F (616°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Frequently Bought Together
30 Copper and Steel Flux Coated Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
47 Sil-Phos Bare Brazing Rod 1/8"
$0.00
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/64X18
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
265 Bare Silver Free Flowing Copper Alloy .050X20
$0.00
Couldn't load pickup availability
45 Silver Bare Brazing Rod 1/16"
$0.00
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 1/16X18
$0.00
Couldn't load pickup availability
Industrial Graphite Block 2 x 10 x 12"
$0.00
Couldn't load pickup availability
Wear Plates Used By Maintenance Welder
$0.00
Couldn't load pickup availability
Light Weight Composite Wear Plates 24X4X13/64
$0.00
Couldn't load pickup availability
Product Description
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
Cadmium-free, use for food, beverage and kitchen equipment
Flux Coating Color: Orange
Tensile Strength: 85,000 PSI
Melting Temperature: 1,140°F (616°C)
Recommended Flux: F40 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Technical Specifications
| Item#: | CW1025 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 85,000 PSI |
| Melting Temperature | 1140 °F |
| Color | Orange |
| Base Metal | Silver |
| Silver Content | High |
| Recommended Flux | F40 |
| Description | High Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.54 lb |
