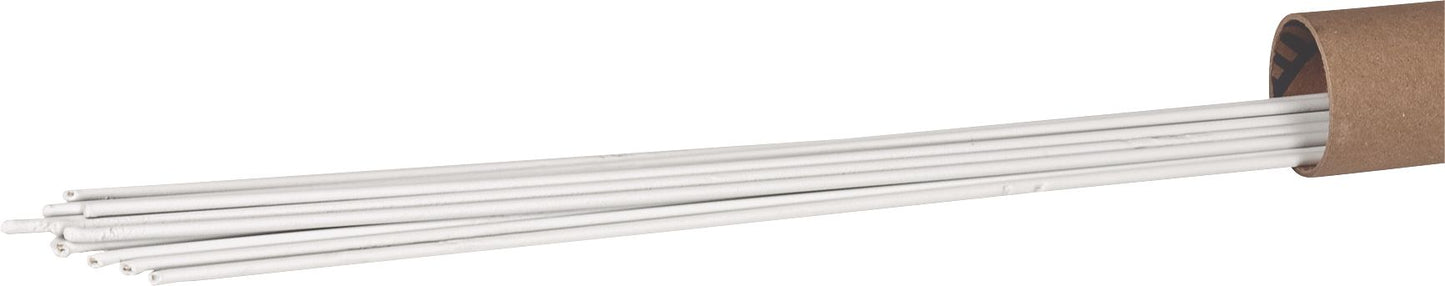

51 High Silver Flux Coated Brazing Rod 1/16"
(Pack of
15)
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.
Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
High-strength, cadmium-free
Flux Coating Color: WhiteTensile Strength: Up to 73,000 PSIElongation: Up to 24%Melting Temperature: 1,225°F to 1,370°F (663°C to 743°C)Recommended Flux: 950 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
40 High Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
44 Silver Bare Brazing Rod 3/32"
Couldn't load pickup availability
23 Copper and Steel Flux Coated Brazing Rod 1/8"
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
52 Silver Flux Coated Brazing Rod 1/16"
Couldn't load pickup availability
40 High Silver Bare Brazing Rod 1/16"
Couldn't load pickup availability
266 Pink Flux Coated Super Fast Flowing Silver Brasing Alloy 3/32x18
Couldn't load pickup availability
AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 2lb
Couldn't load pickup availability
Flint For Spring Loaded Trigger Torch Lighter
Couldn't load pickup availability
Cronatron Welding Guide
Couldn't load pickup availability
Product Description
Providing maximum capillary action and the lowest melting temperatures, these high silver products waste less brazing alloy. They have the ability to join many different metals – tool steel, stainless steel, alloy steel, copper and brass alloys and many others.Superior Advantages
• Thin flow provides excellent capillary action
• Excellent electrical conductivity
• Low melt temperatures
High-strength, cadmium-free
Flux Coating Color: WhiteTensile Strength: Up to 73,000 PSIElongation: Up to 24%Melting Temperature: 1,225°F to 1,370°F (663°C to 743°C)Recommended Flux: 950 (if needed)
Typical Applications
• Electrical components
• Carbide tipping
• Copper coils and tubing
• Food, beverage and kitchen equipment (cadmium-free products)
Usage ProcedureMaterials should be smooth and free of burrs or uneven edges. A carburizing oxyacetylene flame should be used, heating a broad surface along the joint line. Keep the flame cone one inch ahead of the alloy rod and a continuous fillet will form. Clean flux residue off with water.
Technical Specifications
| Item#: | P14075 |
|---|---|
| Welding Process | Brazing |
| Type | Flux Coating |
| Diameter | 1/16 " |
| Length | 18 " |
| Tensile Strength | 73,000 PSI |
| Melting Temperature | 1225-1370 °F |
| Color | White |
| Base Metal | Silver |
| Silver Content | High |
| Recommended Flux | F40 |
| Description | High Silver |
| UNSPSC #: | 23271804 |
| TAA Compliant: | Yes |
| Weight: | 0.65 lb |
