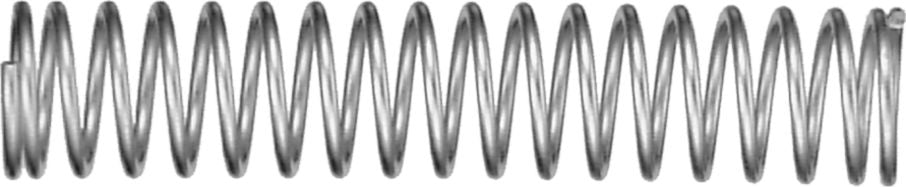

Compression Spring, Steel, 17 Wire Gauge, 15/32" ID, 19/32" OD, 3" Length, 19 Coils, 11lbs Maximum Work Load
(Pack of 5)

SKU:89583 Item#: 89583

Kent Automotive

• The most common spring type
• Used in applications where mechanical parts must be separated by constant applied force
To determine the spring rate for a length not shown, divide the original length by the desired length, then multiply by the original spring rate.Example: The rate for No. 89581, cut to 1", would be 3 divided by 1, then multiplied by 2.0, or 6 lbs. per inch.

Check Availability

Quantity

Frequently Bought Together

180ml Spray Cup System - Water-Based - 50 Liners, 50 Lids, 20 Stoppers, 1 Hard Cup, 1 Collar

Item#: 1677460

High-Strength Double Side Molding Tape 5/8" x 50'

Item#: KT12219

High-Strength Double Side Molding Tape 1/2" x 50'

Item#: KT12221

Friction Tape 3/4" x 60'

Item#: 9009

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Bumper Fascia Push-Type Retainer Nylon 18mm

Item#: KT12847

Push-Type Retainer Nylon 15mm

Item#: 1372010

Marker Pen Assortment 12Pcs

Item#: 1558888

Marker Pen Orange

Item#: 1558894

PVA Drying Cloth Roll 23-1/4 x 31"

Item#: 1549133

Product Description

Technical Specifications

Item#:	89583
Type	Compression Spring
O.D.	19/32 "
Length	3 "
I.D.	15/32 "
Wire Diameter	0.054 "
Wire Gauge	17
Number of Coils	19
Rate	4.5 lb./in.
Maximum Work Load	11 lb
Material	Steel
UNSPSC #:	31161904
TAA Compliant:	Yes
Weight:	0.15 lb
