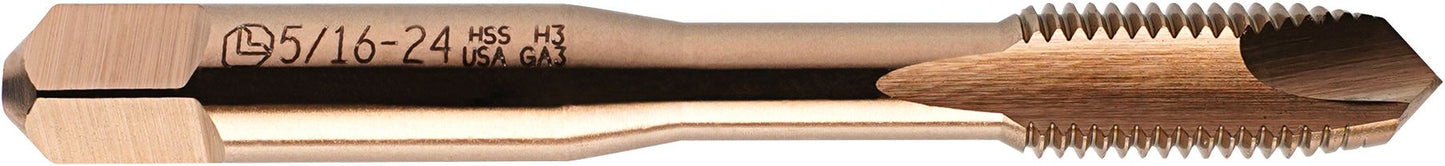

Spiral Point Hand Tap, High Speed Steel, 2 Flute, 5/16-24, 11/16" Thread Length
(Pack of
1)
SKU:61132 Item#: 61132
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Twist-On Premium Zirconium Grain Grinding Disc 2"
Couldn't load pickup availability
Curved Wood Handle Scratch Brush
Couldn't load pickup availability
Scotch-Brite Roloc Bristle Disc 2"
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Rivet Nylon 1/4"
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
HSS Spiral Point Hand Tap 12-28
Couldn't load pickup availability
HSS Spiral Point Hand Tap 7/16-20
Couldn't load pickup availability
HSS Spiral Point Hand Tap 1/4-28
Couldn't load pickup availability
Cryotap 1/2"-13 Tri-Pak
Couldn't load pickup availability
Cryotap M10 x 1.5 Metric Taper Hand Tap
Couldn't load pickup availability
Cryotap M7 x 1.0 Metric Plug Hand Tap
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-3/4" (M8)
Couldn't load pickup availability
Cryobit 1/8" Dia. Maintenance Drill Bit , 135o Split Point, No Flats
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61132 |
|---|---|
| Type | Fractional |
| Diameter | 5/16 " |
| Pitch | 24 |
| Flutes | 2 |
| Thread Length | 11/16 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | I |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
