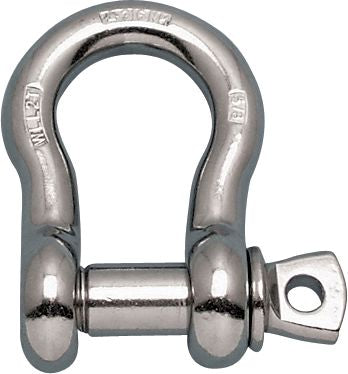

Oversize Screw Pin Anchor Shackle, Stainless Steel, 5/8", 4,000 lb WLL
(Pack of
2.0)
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.
• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Turned Eyebolt, Zinc-Plated, 5/16" x 3"
Couldn't load pickup availability
Eyebolt, Machinery, Stainless Steel, 5/16" x 1-1/8"
Couldn't load pickup availability
Shoulder Eyebolt, Machinery, Self-Colored, 7/16" x 1-3/8"
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Screw Pin Chain Shackle, 1/4", 1,000 lb WLL
Couldn't load pickup availability
Screw Pin Long Reach Shackle, 5/8", 7,000 lb WLL
Couldn't load pickup availability
Oversize Round Pin Anchor Shackle, Stainless Steel, 1/2", 3,000 lb WLL
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Product Description
Screw pin shackles afford quick and easy removal of the screw pin which is secured by torque. While the threaded pin can resist axial forces, it is vulnerable to backing out and the shackle is not reliable in applications where the pin is subjected to a torque or twisting action.• 316 Stainless Steel
• Meets Federal Specification RR-C-271F, Type IVA, Class 2
• Desirable in applications where the shackle is frequently removed
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1427312 |
|---|---|
| Type | Anchor Shackle |
| Style | Screw Pin |
| Body Material | 316-NM Stainless Steel |
| Size | 5/8 " |
| Working Load Limit | 4,000 lb |
| Pin Diameter | 3/4 " |
| Pin Material | 316-NM Stainless Steel |
| Width Between Eyes | 1-1/16 " |
| Bow Width | 1-1/2 " |
| Depth | 2-3/8 " |
| UNSPSC #: | 31132600 |
| TAA Compliant: | No |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
