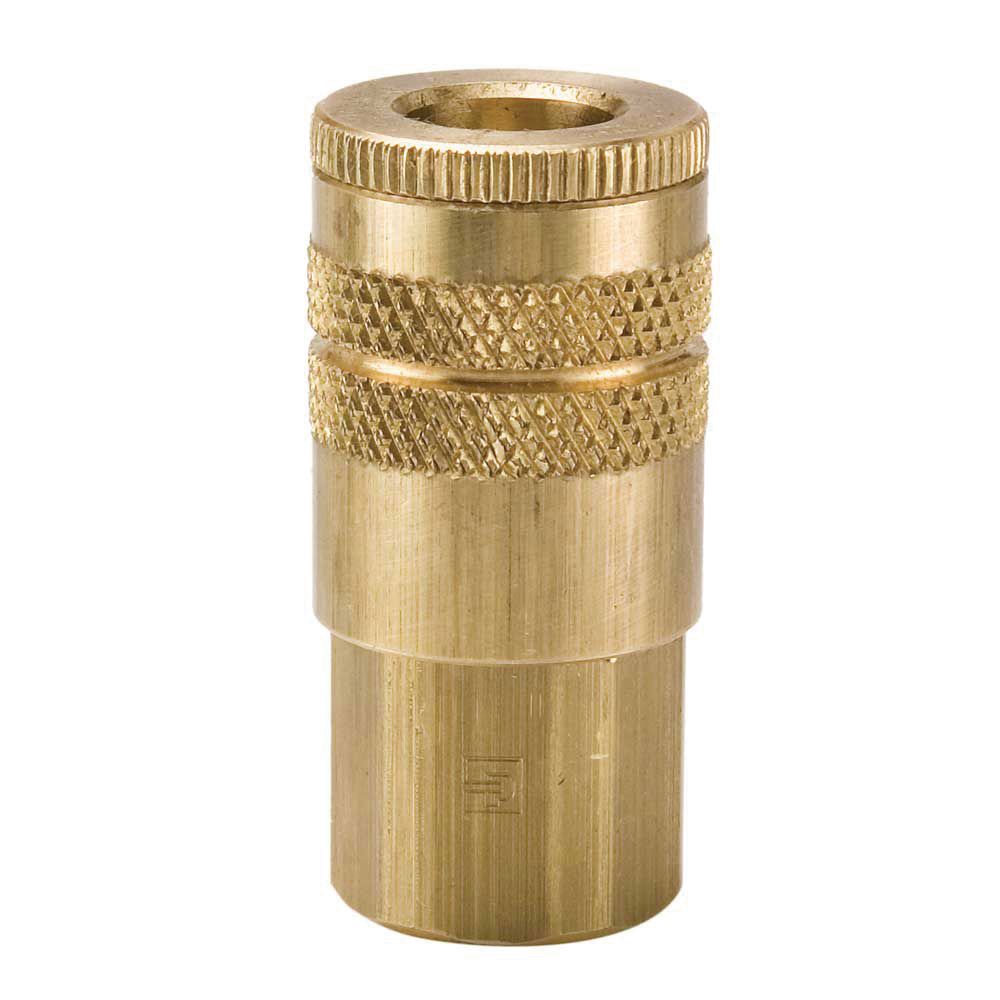

20 Series Coupler, Brass, Standard Industrial, 300PSI, Female NPTF, 1/4" Body Size, 3/8-18 Thread Size
(Pack of
1)
SKU:1269502 Item#: 1269502
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.
• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Frequently Bought Together
Push-Button Air Coupler Plug Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Universal Air Coupler 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Humpback Reel Accessories - Foam Cannon
$0.00
Couldn't load pickup availability
Hose Hanger
$0.00
Couldn't load pickup availability
DOT Union Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Universal Air Coupler Brass 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Product Description
20 Series Pneumatic Couplers mate with Industrial Interchange nipples, the standard male tip of the pneumatic industry.• Mates with Industrial Interchange nipples manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B) global standards
• 1/4” body size has a brass body and steel valve, 3/8” body size has all steel construction
• Tubular valve delivers high flow with minimal pressure drop
• Integral sleeve guard resists accidental disconnection
• Air compressors
• Pneumatic tools
• Water
• Grease
• Paint
Technical Specifications
| Item#: | 1269502 |
|---|---|
| Manufacturer Model #: | B23E |
| Type | Coupler |
| Style | Standard Industrial |
| Body Size | 1/4 " |
| Thread Style | Female NPTF |
| Thread Size | 3/8-18 |
| Working Pressure | 300 PSI |
| Material | Brass |
| Length | 1.95 " |
| Seal Material | Nitrile |
| Hex Size | 0.81 " |
| Locking Mechanism | 4 Ball |
| UNSPSC #: | 27131613 |
| TAA Compliant: | No |
