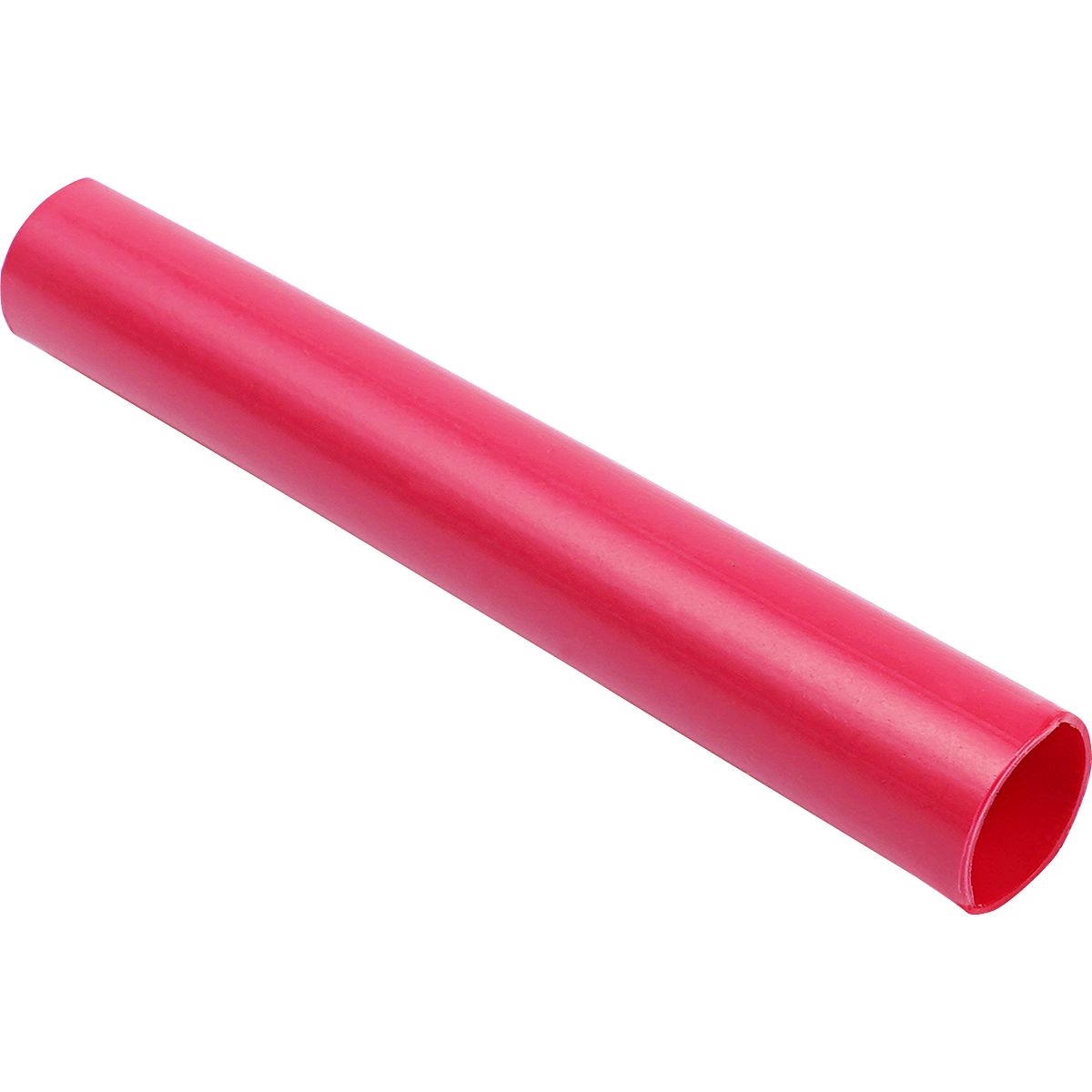

3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
(Pack of
10)
SKU:DY21880008 Item#: DY21880008
Thermal Shrinkable Wire Protection, Double Layer, Double Protection
• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Frequently Bought Together
Miniature Incandescent Bulb 12V 3CP
$0.00
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
$0.00
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 14 AWG Black
$0.00
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
$0.00
Couldn't load pickup availability
Universal Socket Set, Metric, 3/8" Drive, 12pc
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
11Pc Lock and Load Hammer Set
$0.00
Couldn't load pickup availability
Universal Socket Set, Metric, 3/8" Drive, 12pc
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 14 to 10 AWG Black
$0.00
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
$0.00
Couldn't load pickup availability
Product Description
Thermal Shrinkable Wire Protection, Double Layer, Double Protection• Greater flexibility
• Better inner-seal flow improves encapsulation
• Combines a sealant inner layer and a tough, abrasion-resistant outer cover
• The shrinking outer layer forces the liquid inner layer into the crevices and spaces of the wires or cable for a moisture-resistant, perfect fit
• An easy-to-use heat-shrink system that protects wire connections from 4/0 cable down to 22-gauge wire
• Shrink Temperature: 275°F/135°C
Technical Specifications
| Item#: | DY21880008 |
|---|---|
| Style | Dual Wall |
| Wire Gauge Coverage | 12-8 AWG |
| Diameter | 3/8 " |
| Length | 3 " |
| Color | Red |
| I.D. Before Shrinkage | 0.375 " |
| I.D. After Shrinkage | 0.135 |
| Dielectric Strength | 500 V/mm |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 275°F/135°C |
| Tensile Strength | 1,500 PSI |
| Approvals | AMS-DTL - 23053/4, CL-1, UL E194625 |
| Description | Thermapod Sealflex Heat Shrink Tubing 3/8 x 3 Red |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.035 lb |
