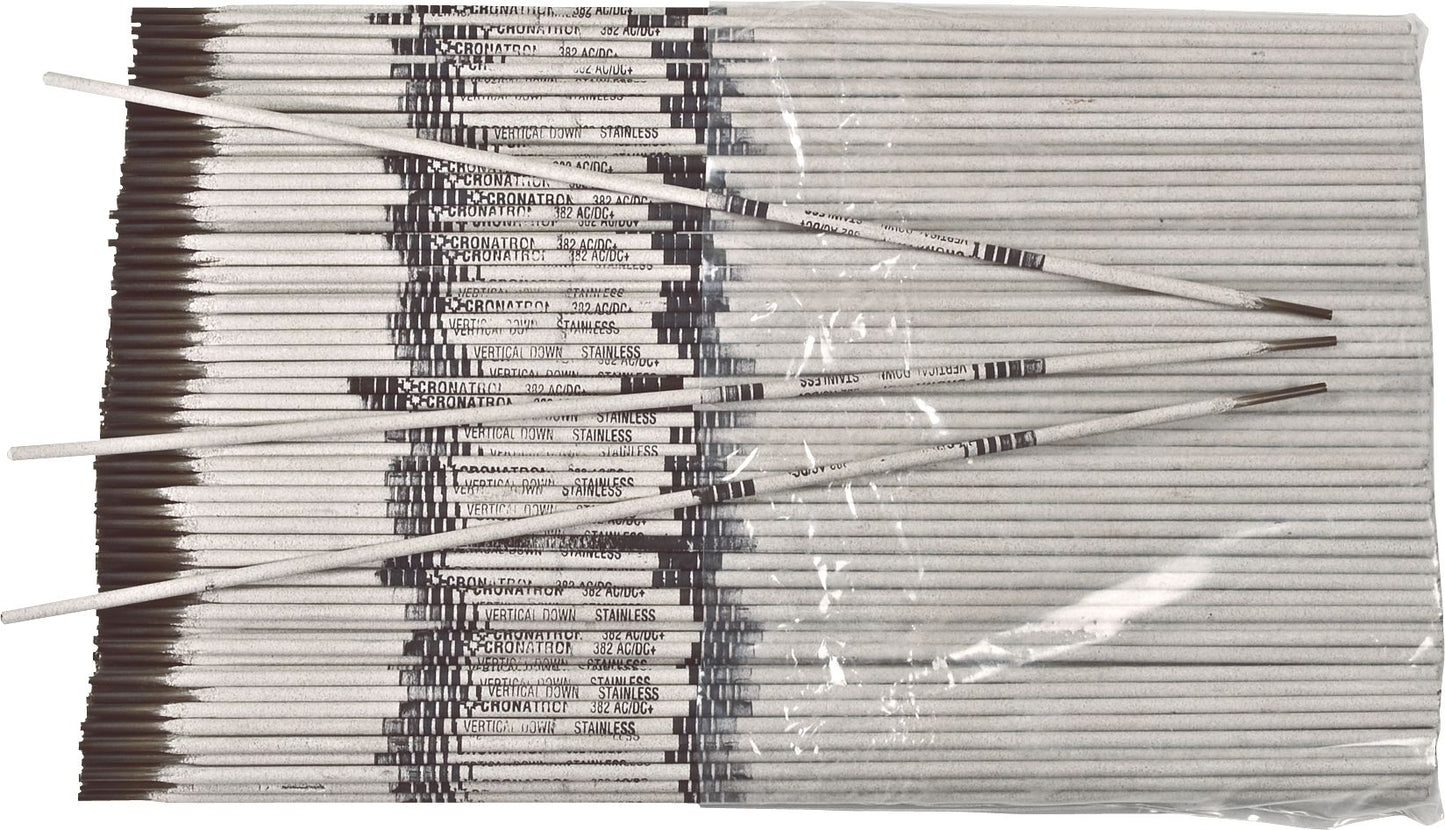

382 Stainless Steel Stick Rod Electrode, Flux Coated, 50 to 70 Amps, 35% Elongation, DCRP/AC Polarity, 3/32"
(Pack of
10)
SKU:CW1518 Item#: CW1518
Premium Austenitic Stainless Steel Electrodes and Wires
X-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
All-position stainless steel for buildup and joining
Tensile Strength: 80,000 PSIElongation: 35%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity for vertical down welding. Hold a short arc and tilt electrode 10° in the direction of travel using a stringer bead technique.
Frequently Bought Together
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
E316L-16 Stainless Steel Stick Rod Electrode 5/32"
$0.00
Couldn't load pickup availability
3880 Stainless Steel TIG Wire 3/32"
$0.00
Couldn't load pickup availability
126 Stainless Steel Stick Electrode 5/64
$0.00
Couldn't load pickup availability
3/8 on 3/8 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
Industrial Graphite Rod 1 x 12"
$0.00
Couldn't load pickup availability
1/4 on 1/4 Dimension I Double Pass Overlay
$0.00
Couldn't load pickup availability
9-6506 Plasma Cutting Electrode
$0.00
Couldn't load pickup availability
Oxy-Therm Collet 3/8"
$0.00
Couldn't load pickup availability
Oxy-Therm Collet Grommet 1/4"
$0.00
Couldn't load pickup availability
Product Description
Premium Austenitic Stainless Steel Electrodes and WiresX-ray quality welds, smooth-running in all positions for joining the most common grades of stainless steels including 303, 304, 307, 308, 309, 316, 317 and the low carbon “L” version of these alloys.
All-position stainless steel for buildup and joining
Tensile Strength: 80,000 PSIElongation: 35%Polarity: AC or DC Reverse
Typical Applications
• Piping and tubing
• Food and medical processing equipment
• Housings and impellers
• Tanks and vats
Usage ProcedureUse AC or DC reverse polarity for vertical down welding. Hold a short arc and tilt electrode 10° in the direction of travel using a stringer bead technique.
Technical Specifications
| Item#: | CW1518 |
|---|---|
| Welding Process | Stick |
| Type | Flux Coated |
| Diameter | 3/32 " |
| Tensile Strength | 80,000 PSI |
| Elongation | 35 % |
| Base Metal | Stainless Steel |
| Polarity | DCRP/AC |
| UNSPSC #: | 23271810 |
| TAA Compliant: | Yes |
| Weight: | 10.0 lb |
Product Restrictions
