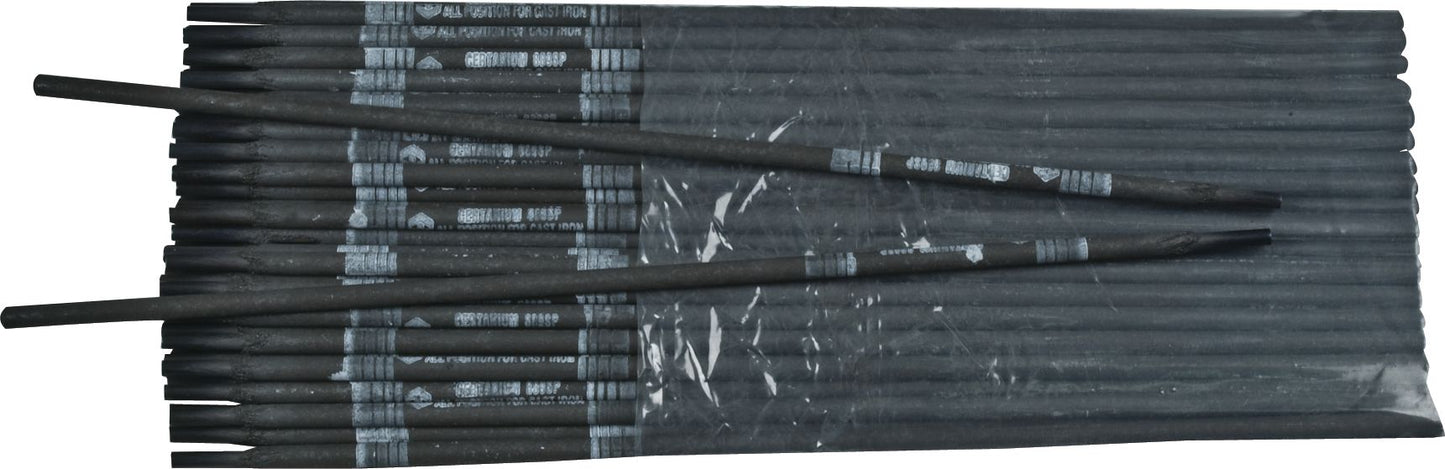

889 Cast Iron Stick Rod Electrode, Flux Coated, 180 to 222 HB Hardness, 60 to 100 Amps, DCRP/DCSP/AC Polarity, 3/16"
(Pack of 10)

SKU:P12009 Item#: P12009

Certanium®

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Check Availability

Quantity

Frequently Bought Together

235 Cast Iron Stick Rod Electrode 1/8"

130 Hpm Cast Iron Machinable Electrode 1/8

Item#: EG13040000

211 Cast Iron Stick Rod Electrode 5/32"

8" Dual Jaw Adj and Pipe Wrench

Item#: DY89310224

SAE/Metric 3/8 Socket Blow Molded Case (*Empty Case Only)

Item#: DY75080223

Extendable Handle Ratchet 3/8 Drive

Item#: DY89310027

Rocker Panel Molding Clip Nylon White 12 x 20mm

Front Bumper Trim Panel/Running Board Split Rivet

Front/Rear Bumper Push-Type Retainer Nylon 20mm

CuSi-A Wire for Mig Brazing, 10lbs

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .045" 33lb

AWS E71T-11 Carbon Steel MIG Flux Core Welding Wire .035" 33lb

9-6501 Plasma Cutting Tip

9-6004 Plasma Cutting Shield Cup

177888 Plasma Cutting Deflector

Product Description

All-position welding for any type of weldable cast iron repair and cast iron to steel.
Superior Advantages
• High strength welds
• Fully machinable
• Pass-over-pass welding to save time
• All-position welding may eliminate the need to dismantle equipment to perform repairs
For all cast irons – even steel to cast iron
Tensile Strength: Up to 84,000 PSIHardness: 180 – 222 BHNPolarity: AC or DC Straight or Reverse
Typical Applications
• Pump and bearing housings
• Cylinder blocks and heads
• Machine bases
• Manifolds and exhaust systems
Usage Procedure:Remove grease, scale and other impurities from weld area. Bevel cracks or breaks (70° to 90° “V”). CRONACUT™ 1100 is the fastest and easiest method to prepare section for weld repairing. Use a short to medium arc at the lowest possible amperage for best results. Employ weaving technique or stringer beads. Peen to relieve stress. Remove slag between passes. Slow cooling to room temperature recommended.

Technical Specifications

Item#:	P12009
Welding Process	Stick
Type	Flux Coated
Diameter	3/16 "
Tensile Strength	84,000 PSI
Base Metal	Cast Iron
Hardness	180-222 BHN
Polarity	DCRP/DCSP/AC
UNSPSC #:	23271810
TAA Compliant:	Yes
Weight:	10.53 lb
