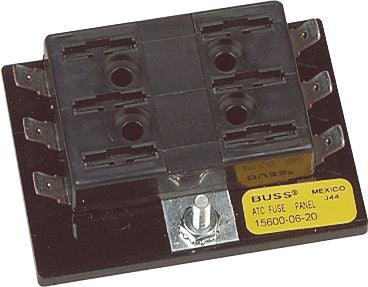

ATO/ATC Fuse, Panel, 6-Terminal, Short Base, 30 Amps, High-Grade Thermoplastic, Quick-Connect Terminal
(Pack of
1)
SKU:62386 Item#: 62386
• Accepts ATC/ATO® blade-type fuses or blade-type automatic or manual reset circuit breakers
• A single, common power input makes it simple to wire for multiple circuits
• Made of high-grade thermoplastic for durability
• Quick-connect terminal for easy installation
• Recessed fuse contacts provide touch-safe protection
• 30A maximum rating
• Rated to 221°F (105°C) with a 94V-0 flame retardant
• For use in trucks, buses, boats and recreational vehicles
Couldn't load pickup availability
Catalog page#: 2-57
Frequently Bought Together
Butt Connector 22 to 24 AWG Clear
Couldn't load pickup availability
Lithium Battery #2025 3V
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
ATO/ATC Fuse Panel 10-Terminal 30A
Couldn't load pickup availability
MICRO2 Series Blade Fuse 15A Blue
Couldn't load pickup availability
ATO/ATC Fuse 40A Orange
Couldn't load pickup availability
ATO/ATC Fuse 5A Tan
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Accepts ATC/ATO® blade-type fuses or blade-type automatic or manual reset circuit breakers• A single, common power input makes it simple to wire for multiple circuits
• Made of high-grade thermoplastic for durability
• Quick-connect terminal for easy installation
• Recessed fuse contacts provide touch-safe protection
• 30A maximum rating
• Rated to 221°F (105°C) with a 94V-0 flame retardant
• For use in trucks, buses, boats and recreational vehicles
Technical Specifications
| Item#: | 62386 |
|---|---|
| Style | ATC/ATO Fuse Panels |
| Number of Terminals | 6 |
| Base Type | Short |
| Temperature Max. | 221 F |
| Flame Retardant | 94V-0 |
| Type | Vehicle Circuit Protection |
| UNSPSC #: | 39121600 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
