Blind Rivet Nut Insert, Riv-Float, Steel, Zinc Clear Finish, Knurled, Small Flange, M4-0.7, 0.7 to 3.3mm Grip, 10mm Hole
(Pack of
25)
SKU:1405730 Item#: 1405730
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used
• Allows for tolerance stack-up in joint design and misalignment during service of the joint

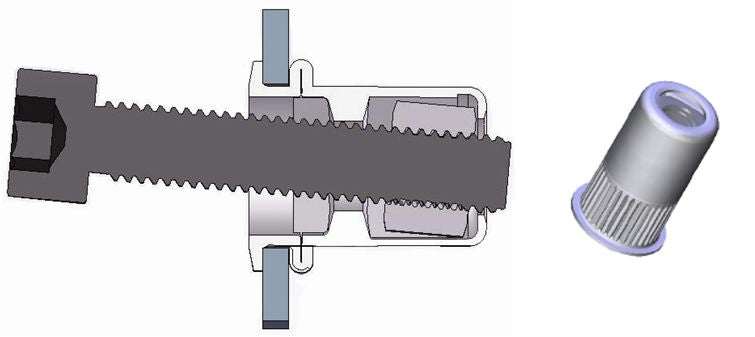

• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Frequently Bought Together
Hex Flange Bolt Grade 10.9 M10-1.25 x 20mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M10-1.25
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M8-1.25
Couldn't load pickup availability
Blind Rivet Nut Insert Flat Head #10-32
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float M5-0.8
Couldn't load pickup availability
Blind Rivet Nut Insert Riv-Float 1/4-20
Couldn't load pickup availability
Oily Large Pack
Couldn't load pickup availability
Green Boom Oil-Only Pillow 10" x 10"
Couldn't load pickup availability
Tru-Flate Safety Push-Button Safety Coupler 1/4" Body x 1/4" MNPT
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
Couldn't load pickup availability
Threaded Insert Installation Tool
Couldn't load pickup availability
Conversion Kit #6-32
Couldn't load pickup availability
Product Description
• Designed for post-installation in applications where cage nuts, clinch nuts, floating nut plates or weld nuts are typically used• Allows for tolerance stack-up in joint design and misalignment during service of the joint
• The floating nut (0.020" radial float) aligns to drive the angle of the screw, virtually eliminating cross-threading and spin-out
• Constructed with higher thread strength than regular rivet nuts
• ROHS compliant
• Zinc electroplated to 8µm with trivalent chromate – 96/240
• Steel material with clear zinc finish
• Knurled body
Technical Specifications
| Item#: | 1405730 |
|---|---|
| Diameter | M4 |
| Grip Range | 0.7 - 3.3 mm |
| Length | 18.28 mm |
| Thread Pitch | .7 mm |
| Hole Size | 10 |
| Body Type | Knurled |
| Head Style | Small Flange |
| Style | Riv-Float |
| Material | Steel |
| Finish | Bright Zinc |
| Size | M4-.7 |
| Type | Blind Rivet Nut |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
