Home Hardware Bolt, Nut and Cotter Long Reach Shackle, 1", 19,000 lb WLL
Hardware

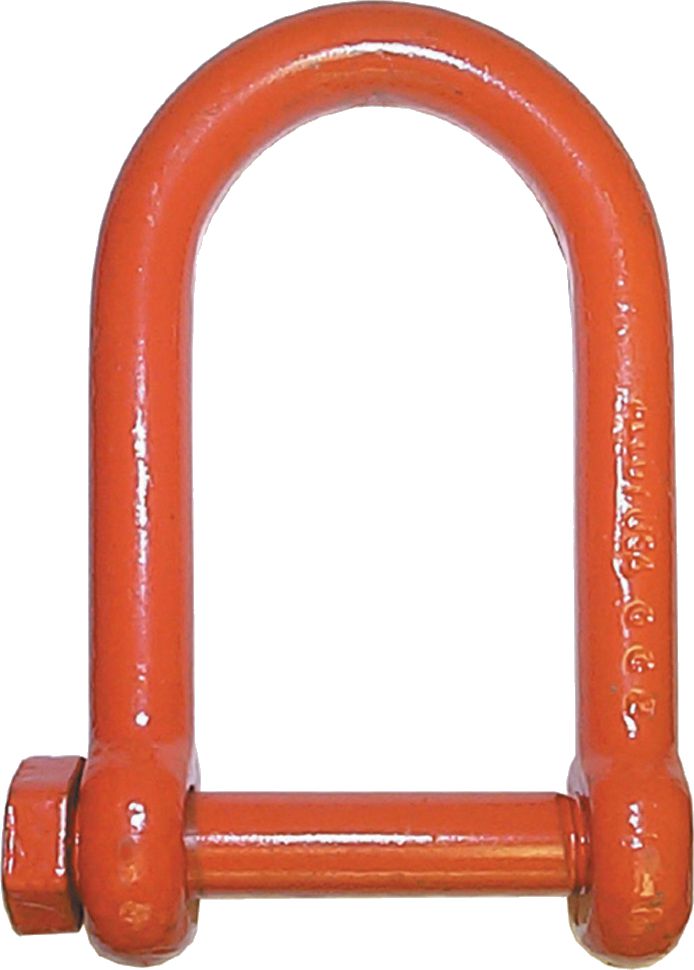

Long Reach Shackle, Bolt, Nut and Cotter, 1", 19,000 lb WLL, Alloy Steel, Self Colored
(Pack of 2)

CM®

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Read More

Frequently Bought Together


Swivel Eye Bolt Snap, 3/8" Eye Size, 2-15/16" Length, Zinc Finish

Item#: 1425000

Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL

Item#: 1427346

Shoulder Eye Bolt with Nut, Stainless Steel, 3/8", 1,000 lb WLL

Item#: 1427932

Swivel Eye Bolt Snap, 3/8" Eye Size, 2-15/16" Length, Zinc Finish

Item#: 1425000

Cold Shut 3/16" Body 525 Lb Safe Load

Item#: 14588

Wire Rope, Steel, Bare, 7x19, 3/16", 4,200 lbs Breaking Strength

Item#: 1439615

Oversize Screw Pin Anchor Shackle, Stainless Steel, 3/8", 2,000 lb WLL

Item#: 1427346

Bolt, Nut and Cotter Anchor Shackle, 1/2", 6,000 lb WLL

Item#: 1429918

Screw Pin Anchor Shackle, 5/16", 1,000 lb WLL

Item#: 1424926

Rear Bumper Cover Retainer Plastic 18mm

Item#: P23263

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Engine Under Cover Drive Rivet Plastic 7mm Hole

Item#: KT13998

Product Description

• Alloy Steel
• Load Rated
• Working Load Limit forged on body
• Meets the requirements of ASME B30.26
• Design factor of 5:1
CAUTION: Do not exceed working load limits.

Technical Specifications

Item#: 1429940
Type Long Reach Shackle
Style Bolt, Nut and Cotter
Body Material Alloy Steel
Finish Self Colored
Size 1 "
Working Load Limit 19,000 lb
Pin Diameter 1 "
Pin Material Alloy Steel
Width Between Eyes 3-1/4 "
Depth 5-1/2 "
UNSPSC #: 31162803
TAA Compliant: Yes
