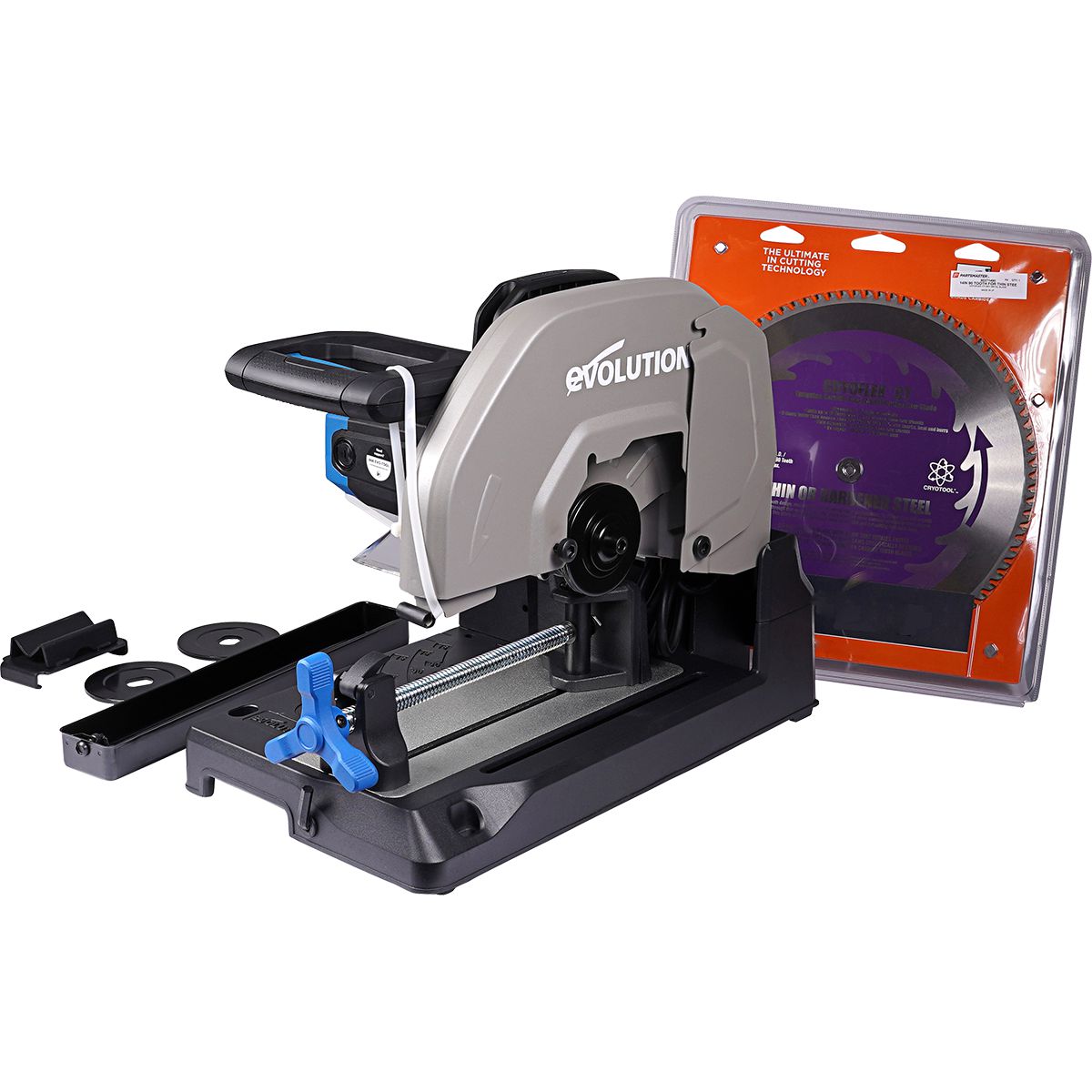

Evolution High Torque Low Speed 110-Volt Metal Cutting Saw for 14" CT Blades
(Pack of
1)
SKU:DY80370006 Item#: DY80370006
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor, team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" x 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" x 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" x 7"
• Rectangle 45° (1/4" Wall): 3-1/16" x 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H x W x D): 22" x 22" x 12-3/4"
Cryoflex® Blades
• Wheel Size: 14" (355mm) diameter x 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
