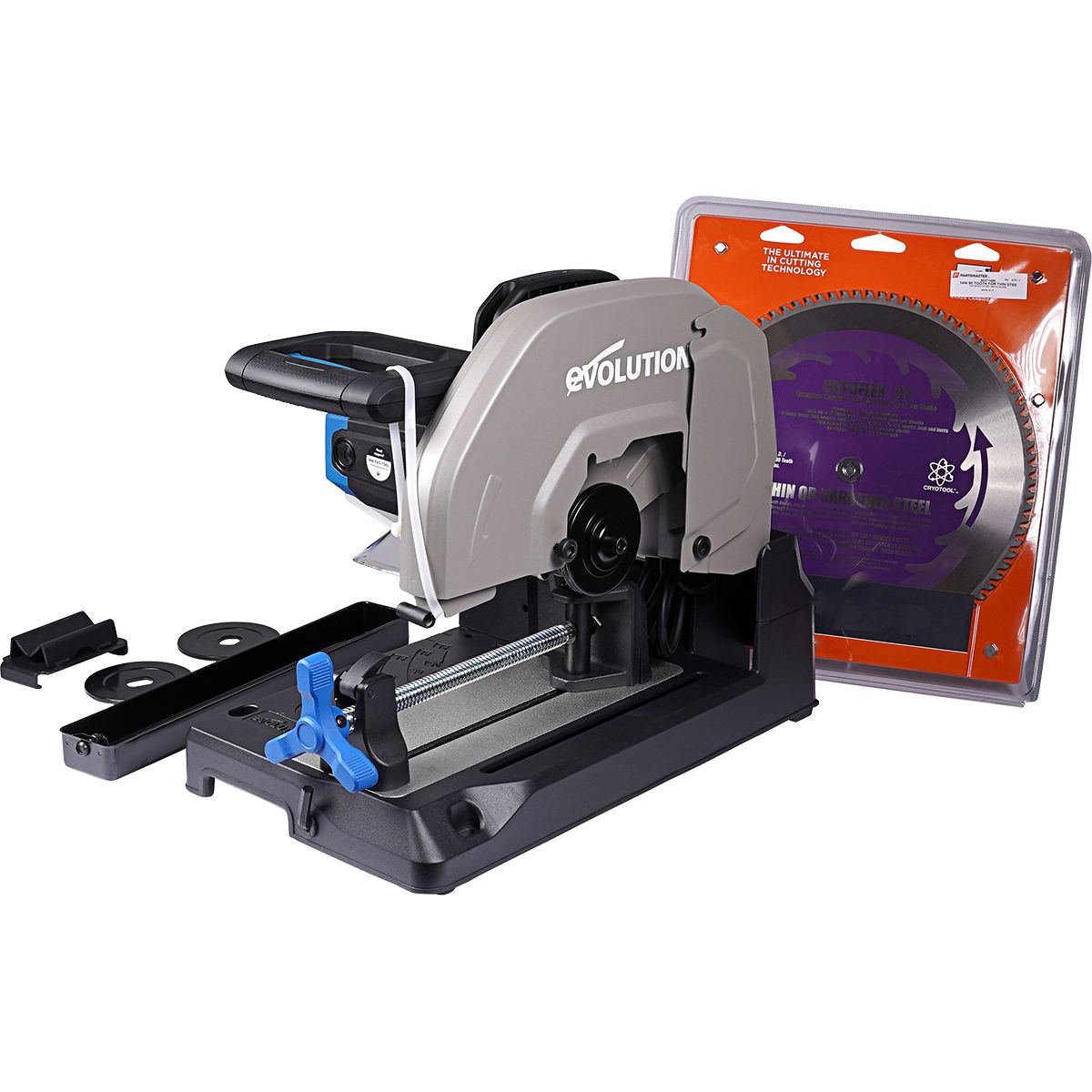

Evolution High Torque Low Speed 110-Volt Metal Cutting Saw W/ 66T Thick Steel Blade
(Pack of
1)
SKU:DY80370009 Item#: DY80370009
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels
• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Frequently Bought Together
Evolution 9" Metal Cutting Circular Saw
$0.00
Couldn't load pickup availability
Cryoflex High Torque Metal Cutting Saw 14 Inch W/O Blade
$0.00
Couldn't load pickup availability
7-1/4" Circular Saw 3500rpm 13A Motor
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/8"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 1/4" (M6)
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Evolution 9" Metal Cutting Circular Saw
$0.00
Couldn't load pickup availability
Power Cord for 14" Chop Saw
$0.00
Couldn't load pickup availability
D1 Portable Magnetic Drill 2" Depth of Cut
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
$0.00
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/8"
$0.00
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 1/4" (M6)
$0.00
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
$0.00
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
$0.00
Couldn't load pickup availability
8Pc Metric Mini Double Head Wrench Set
$0.00
Couldn't load pickup availability
Comfort Grip Ergonomic Jumbo Awl, 4 pc Hook & Pick Set
$0.00
Couldn't load pickup availability
Product Description
• Extra Speed and Life - Lasts 10 times longer and cuts 5 times faster than bonded chop saw wheels• Clean Cuts - Precision ground, high performance-carbide teeth and the high-torque, low speed motor team up to create clean, smoke free cutting
• Versatile - Cuts up to 1" thick steel, 1/2" thick hardened steel alloys, 3/16" stainless steel or 1" thick aluminum with blades designed and engineered for these specific applications
Specifications
• Wheel Size: Tungsten Carbide Tooth, 14" dia. x 1" arbor
• Speed (RPM): 1450 RPM (no load)
• Electrical: 2200 Watts Motor (115v 60Hz): 3HP / 2200 W
• Maximum Box Section 90° (1/4" Wall): 4-3/4" X 4-3/4"
• Max Square 45° (1/4" Wall): 3-1/2" X 3-1/2"
• Rectangle 90° (1/4" Wall): 3-3/4" X 7"
• Rectangle 45° (1/4" Wall): 3-1/16" X 4-5/16"
• Round 90° (1/4" Wall): 5-1/8"
• Round 45° (1/4" Wall): 4-1/8"
• Recommended Maximum Duty Cycle: 30 Min
• Sound Pressure Level (under load): 112.4 dBA
• Weight: 50.6 LBS
• Maximum Dimensions (H X W X D): 22" X 22" X 12-3/4"
Cryoflex Blades
• Wheel Size: 14" (355mm) diameter X 1" (25mm) arbor hole
• Wheel Speed: Max 1500 RPM
• Teeth: Tungsten carbide teeth (78 Rc)
• Body: Heat-treated alloy steel (41Rc)
Warning: Do not use Cryoflex CT Blades on saws that rotate faster than 1500 RPM. Standard abrasive chop saw machines operate at much higher speeds and are unsafe.
Technical Specifications
| Item#: | DY80370009 |
|---|---|
| Blade Diameter | 14 " |
| Blade Arbor | 1 " |
| Depth of Cut | 5-1/8" for Round 90° (1/4" Wall) |
| Maximum RPM | 1,450 |
| Motor | 115V, 2,200W, 60Hz |
| Dimensions | 22.00" H x 22.0" W x 12-3/4" L |
| UNSPSC #: | 27112802 |
| TAA Compliant: | No |
