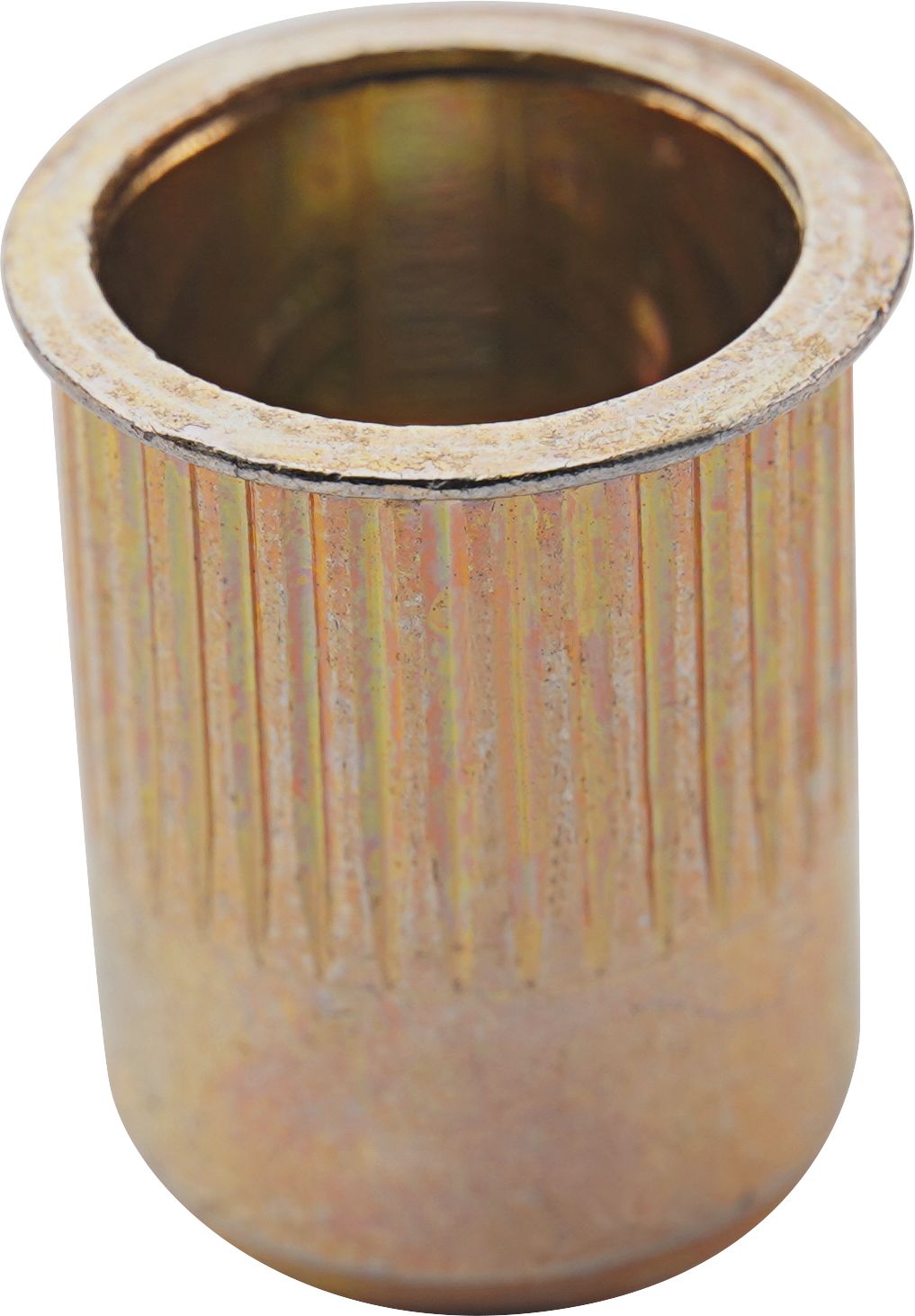

Diamond Grip II Threaded Insert, Steel, Yellow Zinc Finish, Standard Flange, Fine Thread, 5/16-24, 0.027 to 0.15" Grip
(Pack of
25)
SKU:94737 Item#: 94737
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw
• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Frequently Bought Together
Diamond Grip II Threaded Insert 1/4-28
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert M8-1.25
$0.00
Couldn't load pickup availability
Diamond Grip II Threaded Insert #8-32
$0.00
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
$0.00
Couldn't load pickup availability
Lockbolt Collar Standard Flange Aluminum 3/16"
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Diamond Grip II and Thin Wall Installation Tool
$0.00
Couldn't load pickup availability
Threaded Insert Installation Tool
$0.00
Couldn't load pickup availability
Conversion Kit #6-32
$0.00
Couldn't load pickup availability
Product Description
• Wide knurl provides high torque-out values – will withstand the torque of a Grade 5 cap screw• Wide grip ranges – one insert covers grip ranges of multiple comparable inserts
• Can be installed after finish
• Standard flange allows for nearly flush installation without need for special hole preparation, such as countersinking or dimpling
• Blind installation threaded inserts for use in sheet metal, structural foam, fiberglass and some plastics
NOTE: When using Hydraulic Tool 95161, use Standard Threaded Insert Conversion Kits along with the proper size installation kit for Diamond Grip II.
Technical Specifications
| Item#: | 94737 |
|---|---|
| Diameter | 5/16 " |
| Thread Pitch | 24 |
| Grip Range | 0.027 – 0.150 " |
| Flange Type | Standard Flange |
| Hole Size | 0.531 " |
| Pilot Drill Size | 17/32 " |
| Finish | Yellow Zinc |
| Material | Steel |
| Thread | Fine |
| UNSPSC #: | 31161616 |
| TAA Compliant: | Yes |
| Weight: | 0.52 lb |
