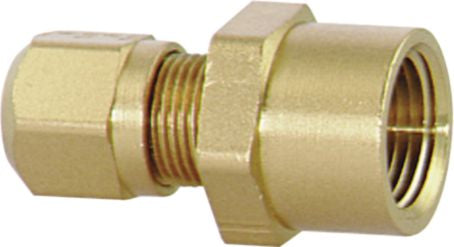

DOT Air Brake Compression Connector for Nylon Tubing, Female, Brass, 3/8" x 1/8-27, Tube x Pipe
(Pack of
5)
SKU:84262 Item#: 84262
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
DOT Compression Nut Brass 1/2"
Couldn't load pickup availability
DOT Compression Elbow Male 45° Brass 3/8 x 1/8"
Couldn't load pickup availability
Parker DOT Compression - Nylon Union Elbow 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/4x1/4
Couldn't load pickup availability
Male Branch Tee, 1/4" Tube OD, 1/8" Male Pipe Thread
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 1/2 to 29/32"
Couldn't load pickup availability
Fuel Line Hose 3/8" ID x 25'
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
Couldn't load pickup availability
Pipe Street Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 3/8-18
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 84262 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Female Connector |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 1/8-27 |
| Size | 3/8X1/8 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.39 lb |
