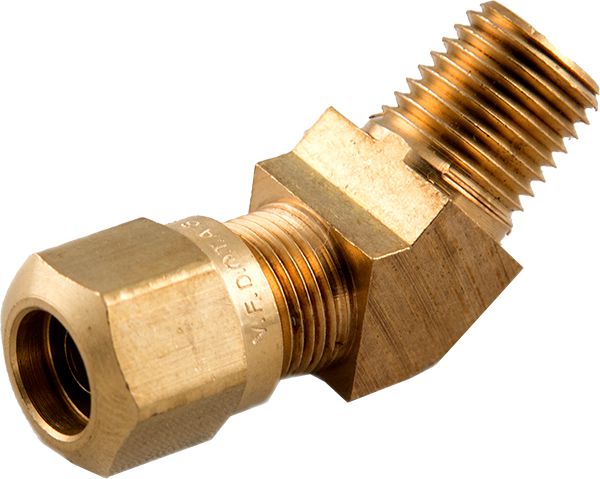

DOT Air Brake Compression Elbow for Nylon Tubing, 45°, Male, Brass, 3/8" x 1/2-14, Tube x Pipe
(Pack of
2)
SKU:1511603 Item#: 1511603
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
Parker DOT Compression - Nylon Female Elbow 90 Degrees 3/8x1/4
$0.00
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Connector 3/8x1/8
$0.00
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Elbow 90 Degrees 5/8x3/8
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 1/4"
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/4 x 1/4"
$0.00
Couldn't load pickup availability
DOT Compression Connector Male Brass 1/2 x 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Union Brass 1/4"
$0.00
Couldn't load pickup availability
Hose Clamp with Hardened Carbon Steel Hex Head Screw Starter Kit
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 3/8 x 1/8-27
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
$0.00
Couldn't load pickup availability
Ergonomic Blow Gun Rubber Tip
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 1511603 |
|---|---|
| Manufacturer Model #: | 96880 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 45 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 1/2-14 |
| Size | 3/8TX1/2P |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.41 lb |
