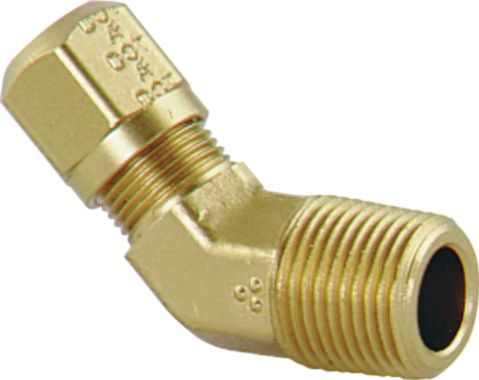

DOT Air Brake Compression Elbow for Nylon Tubing, 45°, Male, Brass, 3/8 x 1/8", Tube x Pipe
(Pack of
2)
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Couldn't load pickup availability
Parker DOT Compression - Nylon Tubing Union 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
Couldn't load pickup availability
DOT Elbow Male 45° Brass 1/4 x 1/8-27
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 25' air hose
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 96879 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Elbow 45 Degrees |
| Connection Type A x B | Tube x Pipe |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 1/8-27 |
| Size | 3/8TX1/8P |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 0.19 lb |
