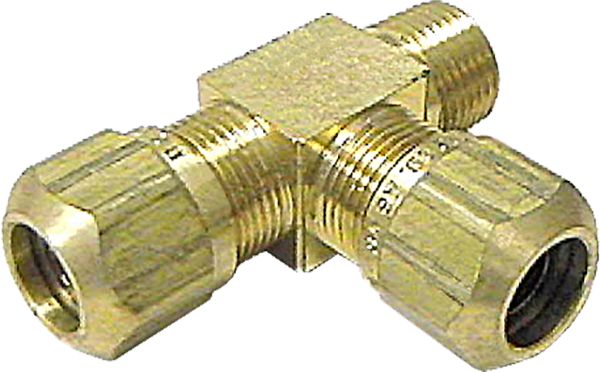

DOT Air Brake Compression Run Tee for Nylon Tubing, Male, Brass, 3/8" x 3/8-18 x 3/8", Tube x Pipe x Tube
(Pack of
5)
SKU:1511574 Item#: 1511574
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
DOT Compression Union Elbow Brass 3/8 x 3/8"
$0.00
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
$0.00
Couldn't load pickup availability
DOT Compression Sleeve Brass 1/4"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 45° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
DOT Compression Nut Brass 3/8"
$0.00
Couldn't load pickup availability
DOT Union Nylon 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 1/2 to 29-32"
$0.00
Couldn't load pickup availability
Master O-Ring Assortment HNBR 33 Items 335Pcs
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Pneumatic Impact Wrench, 1/2 Drive Max Torque 730 lbs
$0.00
Couldn't load pickup availability
Twist Knot Wire Wheel 3" Dia., .014" Wire Dia., 1/4" Shank
$0.00
Couldn't load pickup availability
Acid Brush 3/8 x 5-3/4"
$0.00
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 1511574 |
|---|---|
| Manufacturer Model #: | 84296 |
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Run Tee |
| Connection Type A x B x C | Tube x Pipe x Tube |
| Fitting Dimension A | 3/8 " |
| Fitting Dimension B | 3/8-18 |
| Fitting Dimension C | 3/8 " |
| Size | 3/8X3/8 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 1.02 lb |
