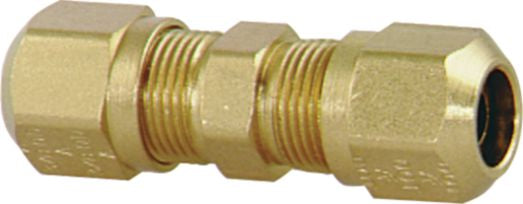

DOT Air Brake Compression Union for Nylon Tubing, Brass, 1/2 x 1/2", Tube x Tube
(Pack of
2)
SKU:84255 Item#: 84255
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing
• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Frequently Bought Together
Parker DOT Compression - Nylon Male Elbow 90 Degrees 1/4x1/4
Couldn't load pickup availability
Male Branch Tee, 1/4" Tube OD, 1/8" Male Pipe Thread
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/4 x 1/2"
Couldn't load pickup availability
DOT Compression Connector Male Brass 3/8 x 3/8"
Couldn't load pickup availability
DOT Compression Hose Mender Brass 1/2 x 1/2"
Couldn't load pickup availability
DOT Compression Branch Tee Male 3/8 x 3/8 x 1/4"
Couldn't load pickup availability
Hose Connector Cap Assortment 20 Items 440Pcs
Couldn't load pickup availability
Super 77 Miniature Hose Clamp SS 5/16 to 7/8"
Couldn't load pickup availability
DOT Union Tee Nylon 1/4 x 1/4 x 1/4"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 7/16 to 1"
Couldn't load pickup availability
Vacuum Hose Connector Straight 1/8 x 1/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
Couldn't load pickup availability
Product Description
• Fittings are shipped with nuts, sleeves and inserts preassembled, ready to slip onto tubing• Meets D.O.T. FMVSS 571.106
• Temperature range: –40°F to +200°F (–40°C to +93°C)
• Exceeds pressure requirements of automotive air brake systems
• Typical applications include air brake systems, air control and gauge lines
• Used with nylon tubing (SAE J844, Type 3)
Assembly Instructions
1. Cut tubing squarely.
2. Insert tubing into fitting until bottomed on seat.
3. Tighten nut with wrench until one thread remains visible on the fitting body; or, the nut should be screwed down finger-tight, then wrench-tightened as indicated in the table (this will allow for a number of remakes).
Technical Specifications
| Item#: | 84255 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Union |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 1/2 " |
| Fitting Dimension B | 1/2 " |
| Size | 1/2 |
| Type | Compression |
| UNSPSC #: | 25171700 |
| TAA Compliant: | No |
| Weight: | 3.4 lb |
