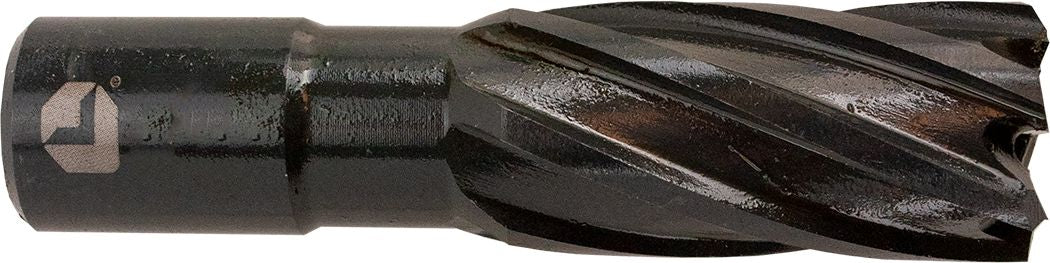

Annular Cutter, High-Performance M2-AL, 1" Depth of Cut, 1-3/16" Diameter
(Pack of
1)
SKU:15234 Item#: 15234
Steelmax® Annular Cutters reduce horsepower and torque requirements by only cutting the periphery of the hole resulting in a burr-free, reamed-quality hole. As a result, the operation is completed three times faster than costly pilot hole and step drilling. Chip load per tooth is greatly reduced, for high penetration, improved hole quality and longer tool life. The core or “slug” left behind is evidence of this efficient cutting method. Holes on curved surfaces as well as interrupted cuts can be made without distortion.
• Drill holes three times faster than with a twist drill
• Drill on curved surfaces such as pipe or tubing
• Produce reamed-quality, burr-free holes
• Overlap centers on existing holes
• Reduced machine size and horsepower requirements
• Cutters are made from high-performance M2-AL

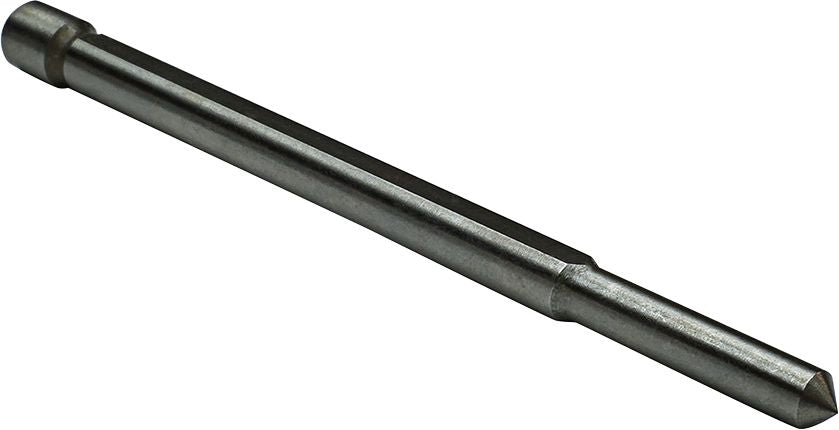

Individual annular cutters do not come supplied with the center pins. Center pins are required and must be ordered separately.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
9/16" Dia. Annular Cutter, 1" Cutting Depth, Pin Not Included
Couldn't load pickup availability
HSS Annular Cutter 1"
Couldn't load pickup availability
CryoBore 1/2" Dia Annular Cutter, 2-3/8" Cutting Depth
Couldn't load pickup availability
CryoBore 1-1/16" Dia. Annular Cutter, 2-3/8" Cutting Depth
Couldn't load pickup availability
Annular Cutter Ejector Pin For 1"- 1 Cutting Depth Cutters
Couldn't load pickup availability
HSS Annular Cutter 3/4"
Couldn't load pickup availability
Eraser Disc Natural Tan 4 x 1"
Couldn't load pickup availability
Reciprocating Saw Blade 9" 14TPI
Couldn't load pickup availability
Double End Drill Bit 1/8"
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
Universal Socket Set, Metric, 3/8" Drive, 12pc
Couldn't load pickup availability
Flexible Flap Disc 3"
Couldn't load pickup availability
Cryo Burr XL 1/4" x 6", 1/4" Shank, Solid Carbide
Couldn't load pickup availability
Cryo Burr Cylindrical
Couldn't load pickup availability
Flexible Flap Disc 3"
Couldn't load pickup availability
Cryo Burr XL 1/4" x 6", 1/4" Shank, Solid Carbide
Couldn't load pickup availability
Cryo Burr Cylindrical
Couldn't load pickup availability
Product Description
Steelmax® Annular Cutters reduce horsepower and torque requirements by only cutting the periphery of the hole resulting in a burr-free, reamed-quality hole. As a result, the operation is completed three times faster than costly pilot hole and step drilling. Chip load per tooth is greatly reduced, for high penetration, improved hole quality and longer tool life. The core or “slug” left behind is evidence of this efficient cutting method. Holes on curved surfaces as well as interrupted cuts can be made without distortion.• Drill holes three times faster than with a twist drill
• Drill on curved surfaces such as pipe or tubing
• Produce reamed-quality, burr-free holes
• Overlap centers on existing holes
• Reduced machine size and horsepower requirements
• Cutters are made from high-performance M2-AL
Individual annular cutters do not come supplied with the center pins. Center pins are required and must be ordered separately.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 15234 |
|---|---|
| Manufacturer Model #: | SM-AC-1188-1 |
| Cutting Diameter | 1-3/16 " |
| Depth of Cut | 1 " |
| Tooth Material | M2-AL |
| UNSPSC #: | 23241600 |
| TAA Compliant: | No |
| Weight: | 0.32 lb |
