Hoist Ring, Heavy Duty®, Metric, 2,200 kg Load Limit, M20x2.5 Thread Size, 38mm Thread Length
(Pack of
1)
SKU:1423221 Item#: 1423221
• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Frequently Bought Together
Eyebolt, Machinery, Self-Colored, 5/16" x 1-1/8"
$0.00
Couldn't load pickup availability
Turned Eyebolt, Stainless Steel, 1/2" x 4"
$0.00
Couldn't load pickup availability
Eye Bolts, Machinery, 5/16 x 1-1/8"
$0.00
Couldn't load pickup availability
Hoist Ring, Safety Engineered, 30,000 lb Load Limit
$0.00
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 450 kg Load Limit
$0.00
Couldn't load pickup availability
Hoist Ring, Heavy Duty®, Metric, 400 kg Load Limit
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 3/32", 920 lbs Breaking Strength
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 1/8", 2,000 lbs Breaking Strength
$0.00
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 1/16", 480 lbs Breaking Strength
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Product Description
• Material: Forged high strength 4140 alloy steel• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423221 |
|---|---|
| Manufacturer Model #: | 34716 |
| Type | Heavy Duty |
| Thread Size | M20x2.5 |
| Thread Length | 38 mm |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 2,200 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 135.0 N·m |

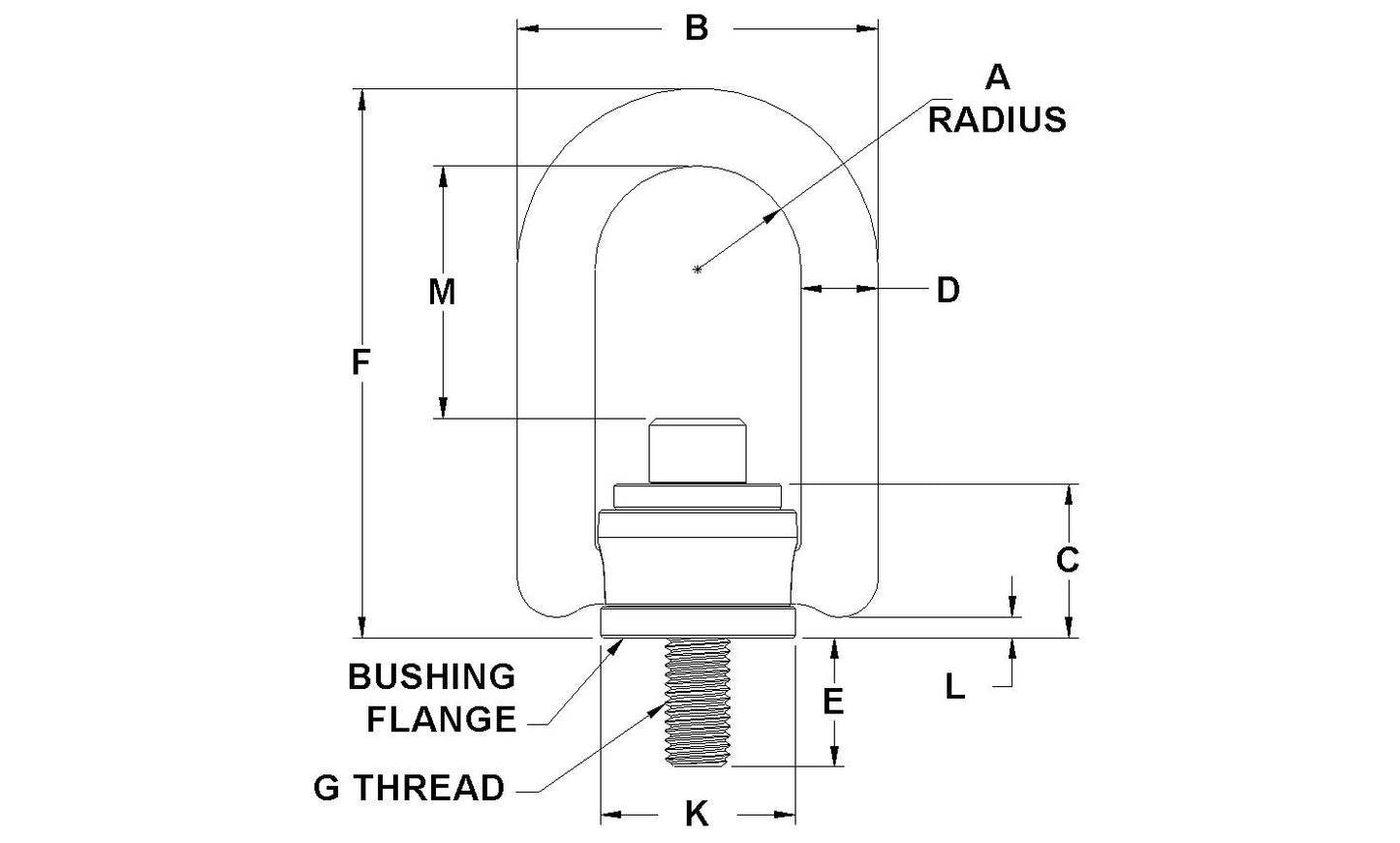

| Dimension A | 25.4 mm |
| Dimension B | 88.9 mm |
| Dimension C | 38.1 mm |
| Dimension D | 19.1 mm |
| Dimension E | 38 mm |
| Dimension F | 134.9 mm |
| Dimension G | M20 x 2.5 mm |
| Dimension K | 48.0 mm |
| Dimension L | 4.4 mm |
| Dimension M | 58.7 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
