Push-on/Lock-on Hose, Synthetic Rubber, 1 Fiber Braid Reinforcement, 3/4" ID, 1.07" OD, 250PSI, Black
(Pack of
200)
SKU:PL12101B12 Item#: PL12101B12
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.
• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber

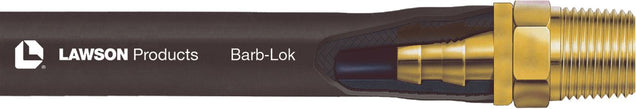

Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Frequently Bought Together
H100 General Purpose Fiber Cover Hose 1/4" Black
$0.00
Couldn't load pickup availability
Push-on/Lock-on Synthetic Rubber Cover Hose 3/8"
$0.00
Couldn't load pickup availability
Push-on/Lock-on Fiber Braided Cover Hose 5/8"
$0.00
Couldn't load pickup availability
Lightweight Garden Hose Assembly 3/4"
$0.00
Couldn't load pickup availability
Contractor Water Hose Assembly 3/4" x 50' Black
$0.00
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr
$0.00
Couldn't load pickup availability
Universal Impact Socket Adapter 3/4Dr
$0.00
Couldn't load pickup availability
10Pc SAE Mini Combination Wrench Set
$0.00
Couldn't load pickup availability
Wobble Hex Bit Socket Set 10Pc Sae 3/8Dr
$0.00
Couldn't load pickup availability
Universal Impact Socket Adapter 3/4Dr
$0.00
Couldn't load pickup availability
Product Description
Primarily for use in air hose applications, Low-Pressure Barb-Lok Hoses are also compatible with crude, fuel and lubricating oils, water, anti-freeze, and transmission fluid.• Temperature ranges:
– Air and water: –40°F to +212°F (–40°C to +100°C)
– Oil: –40°F to +260°F (–40°C to +127°C)
• Reinforcement: One fiber braid
• Cover: Black
• Inner tube: Synthetic rubber
Use with Barb-Lok Fittings (Do not use hose clamps)
New item numbers have been added for industry standard 250 foot reels and a running change has been made for the 50 foot length item numbers. Both lengths feature a Lawson Products layline.
Technical Specifications
| Item#: | PL12101B12 |
|---|---|
| Type | Push-on/Lock-on Hose |
| I.D. | 3/4 " |
| Dash Size | -12 |
| Working Pressure | 300 PSI |
| Burst Pressure | 1200 PSI |
| Minimum Bend Radius | 7 " |
| Inner Tube Material | Synthetic Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Synthetic Rubber |
| Fitting Series | Barb-Lok |
| Temperature | Oil: -40F to +212F, Air: +158F, Water: +185F |
| Color | Black |
| Size | 3/4 (-12) |
| Weight (Lbs. / Ft.) | 0.26 |
| Vacuum Rating (Inches of Hg) | 15 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
| Weight: | 57.0 lb |
