Home Fasteners Multi-Grip Rivet 120° Countersunk Head 3/16"
Fasteners

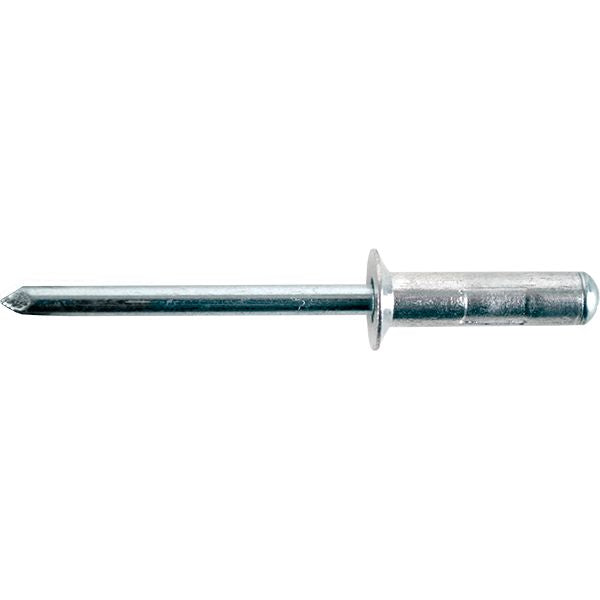

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.062 to 0.312" Grip Range, 0.5" Body Length
(Pack of 500)

Item#: 1543587

Kent Automotive

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm

Item#: 55605

Lockbolt Collar Standard Flange Aluminum 3/16"

Item#: 1543683

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543597

Multi-Grip Rivet Dome Head Aluminum 1/8"

Item#: 1978

Multi-Grip Rivet 120° Countersunk Head 3/16"

Item#: 1543586

Open End Rivet Dome Head Steel 3/16"

Item#: 82331

Open End Rivet Dome Head Stainless Steel 3/16"

Item#: 82345

Solid Rivet Universal Head Hard Aluminum 3/16"

Item#: 1543675

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Front Bumper Specialty Nut Steel M4.2-1.41

Item#: 1420584

Front Rear Bumper Specialty Rivet 3.2mm

Item#: 1558278

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543587
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.062 – 0.312 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.345 "
Head Height 0.051 "
Body Length 0.500 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 2.75 lb
