Home Fasteners Multi-Grip Rivet 120° Countersunk Head 3/16"
Fasteners

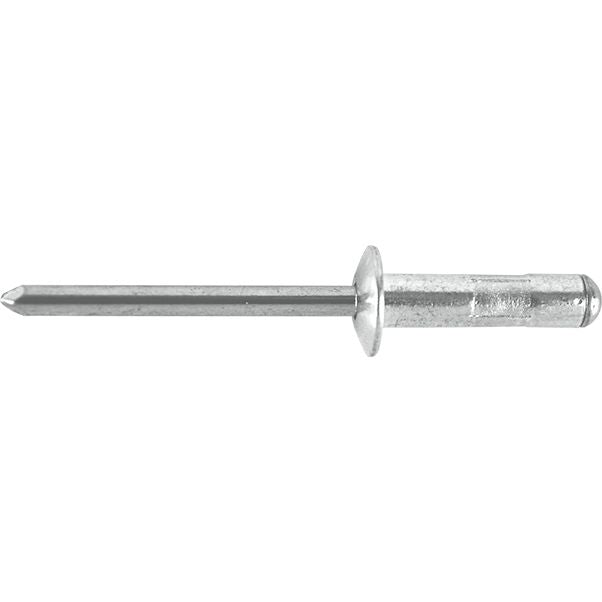

Multi-Grip Rivet, 120° Countersunk Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.25 to 0.5" Grip Range, 0.69" Body Length
(Pack of 100)

Item#: 1543588

Kent Automotive

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Read More
Check Availability

Catalog page#: 11-114

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm

Item#: 55603

Hex Flange Bolt Grade 10.9 M8-1.25 x 30mm

Item#: 55604

DIN 125A Flat Washer Grade 140 HV M6

Item#: 80261

Multi-Grip Rivet Dome Head Aluminum 3/16"

Item#: 1543602

Multi-Grip Rivet Dome Head Aluminum 1/4"

Item#: 1543603

Multi-Grip Rivet 120° Countersunk Head 1/8"

Item#: 1543584

Open End Rivet Dome Head Aluminum 3/16"

Item#: 485

Open End Rivet Large Flange Head Aluminum 3/16"

Item#: 82353

Open End Rivet Dome Head Aluminum 5/32"

Item#: 1968

Engine Under Cover Drive Rivet Plastic 7mm Hole

Item#: KT13998

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Front Fender Push-Type Retainer Nylon 20mm

Item#: KT11397

Product Description

120° Countersunk Head
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Ideal for applications where a flush appearance is required

Technical Specifications

Item#: 1543588
Type Multi-Grip
Head Style 120° Countersunk Head
Material Body / Mandrel Aluminum/Steel
Diameter 3/16 "
Grip Range 0.250 – 0.500 "
Hole Size 0.192 – 0.200 "
Head Diameter 0.345 "
Head Height 0.051 "
Body Length 0.690 "
Shear Strength 350 lb
Tensile Strength 530 lb
UNSPSC #: 31162201
TAA Compliant: No
Weight: 0.65 lb
