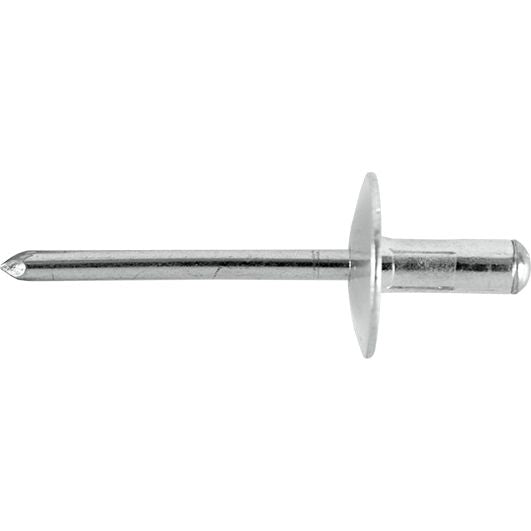

Multi-Grip Rivet, Large Flange Head, Aluminum Body/Steel Mandrel, 3/16" Diameter, 0.062 to 0.25" Grip Range, 0.406" Body Length
(Pack of
100)
SKU:1543592 Item#: 1543592
Large Flange
• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Frequently Bought Together
Open End Rivet Large Flange Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 5/32"
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M10
$0.00
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 3/16"
$0.00
Couldn't load pickup availability
Multi-Grip Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Multi-Grip Rivet 120° Countersunk Head 3/16"
$0.00
Couldn't load pickup availability
Sealing-Type Blind Rivet Large Flange Head 1/8"
$0.00
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 1/4"
$0.00
Couldn't load pickup availability
Solid Rivet Brazier Head Hard Aluminum 3/16"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
Large Flange• Multi-grip capability accommodates wide variations in material thickness
• One rivet can be used to replace several standard grip rivets reducing inventory
• Excellent hole fill capability compensates for irregular holes
• Provides greater bearing surface for fastening soft and brittle facing materials and oversize facing holes
• Works well with soft materials where the increased flange diameter protects the integrity of the application
Technical Specifications
| Item#: | 1543592 |
|---|---|
| Type | Multi-Grip |
| Head Style | Large Flange |
| Material Body / Mandrel | Aluminum/Steel |
| Diameter | 3/16 " |
| Grip Range | 0.062 – 0.250 " |
| Hole Size | 0.192 – 0.200 " |
| Head Diameter | 0.625 " |
| Head Height | 0.069 " |
| Body Length | 0.406 " |
| Shear Strength | 350 lb |
| Tensile Strength | 530 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.72 lb |
