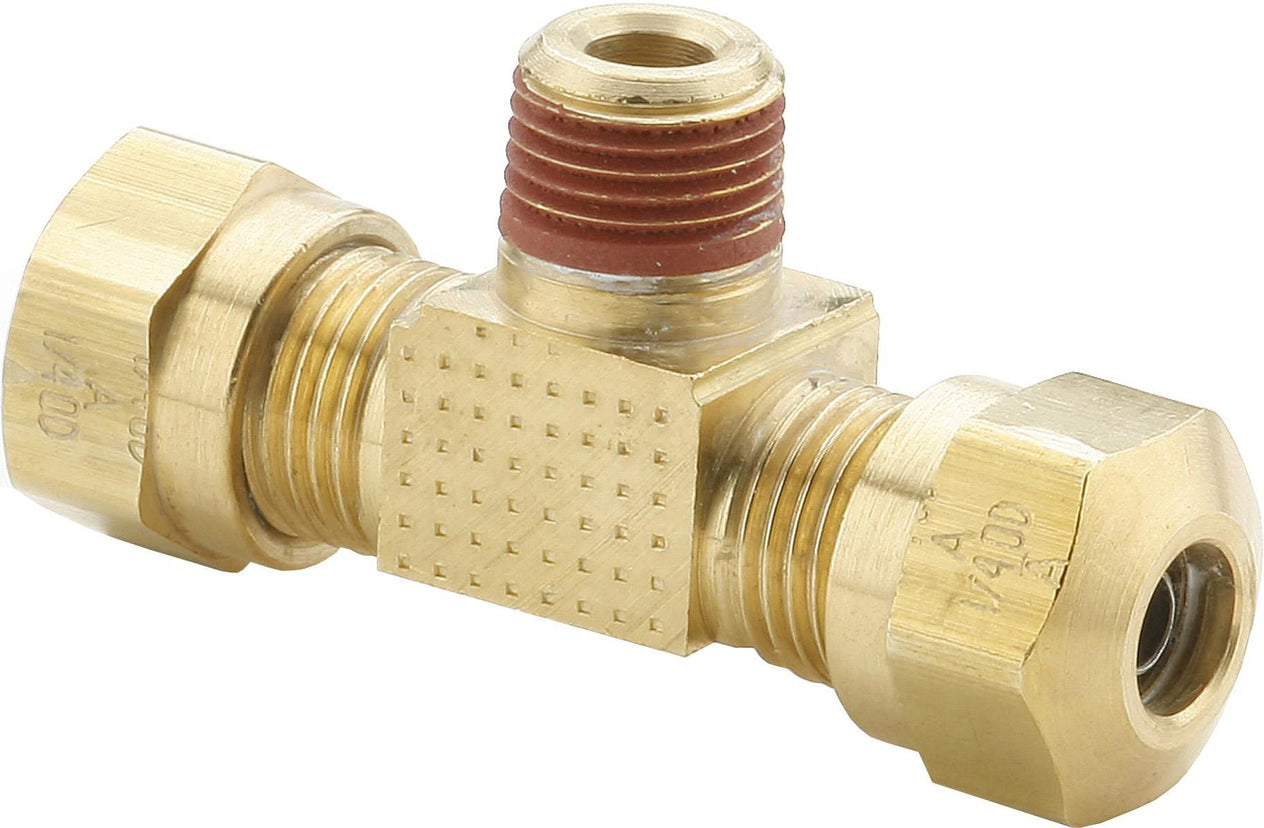

Parker DOT Brass Air Brake Compression - Nylon Male Branch Tee 1/4x1/4x1/4
(Pack of
10)
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.
Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Frequently Bought Together
DOT Compression Connector Male Brass 1/2 x 1/2"
Couldn't load pickup availability

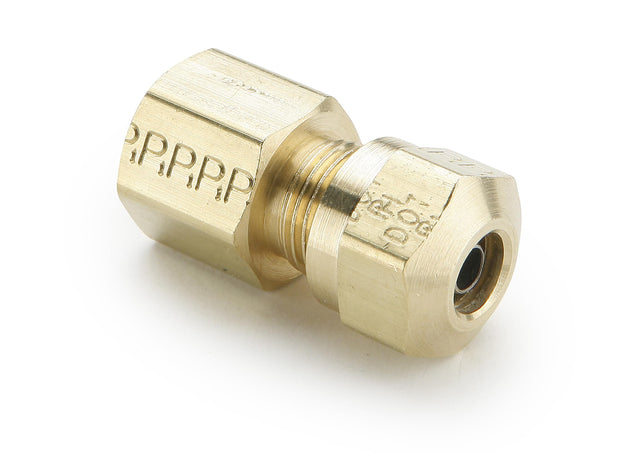

DOT Compression Connector Female Brass 1/2 x 7/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 5/8 x 3/4"
Couldn't load pickup availability

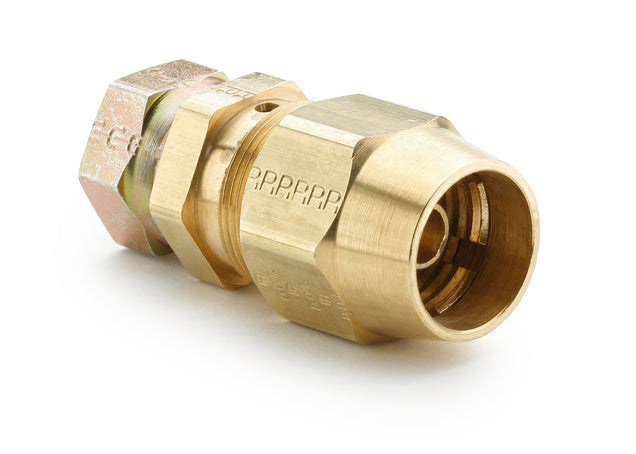

Parker DOT Field Attachable - Female Connector 1/2x7/8-20
Couldn't load pickup availability

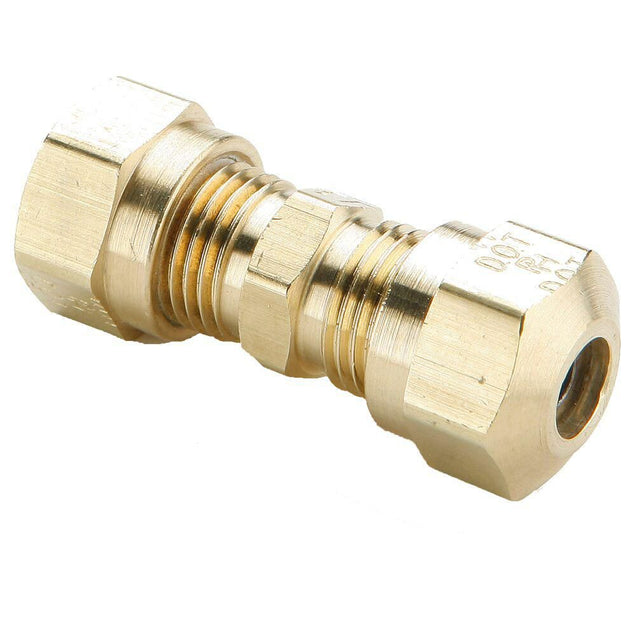

Parker DOT Compression - Nylon Tubing Union 1/4x1/4
Couldn't load pickup availability
Parker DOT Compression - Nylon Male Branch Tee 3/8x1/4x1/4
Couldn't load pickup availability
Vacuum Hose Connector 1/8 x 1/8"
Couldn't load pickup availability
DOT Compression Elbow Male 90° Brass 3/8 x 1/8"
Couldn't load pickup availability
Hose Clamp 301 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 35' air hose
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Product Description
Parker's NTA Fittings utilize a ribbed sleeve for compression and positive grip. Fittings meet SAE and D.O.T. specifications. Designed for all D.O.T. truck and trailer applications. Electroless nickel plated bodies can be used with bio-diesel.Product Features
• Brass Body
• Meets D.O.T. FMVSS571.106 Performance
• Meets functional requirements SAE J246 & SAE J1131
• Pre-applied Thread Sealant
Specifications
• Pressure Range: Up to 150 PSI
• Temperature range: –40° to +200° F (–40° to +93° C)
• Compatible Tubing: SAE J844 Type A & B nylon tubing
Applications
• Air Brakes
• Air Tanks
• Air Ride
• Sliders
• Tire Inflation
• Primary & Secondary Air Lines
Assembly Instructions
1. Cut tubing squarely.
2. Check that port or mating part is clean and free of debris.
3. Insert tubing until it bottoms on seat.
4. Tighten nut with wrench until thread remains visible on the fitting body; (this will allow for a number of remakes)
Technical Specifications
| Item#: | 1608809 |
|---|---|
| Fitting Type | Compression - Nylon Tubing |
| Style | DOT |
| Material | Brass |
| Configuration | Male Branch Tee |
| Connection Type A x B x C | Tube x Tube x Pipe |
| Fitting Dimension A | 1/4 " |
| Fitting Dimension B | 1/4 " |
| Fitting Dimension C | 1/4 " |
| Parker Reference No. | 272NTA-4-4 |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 1.305 lb |
